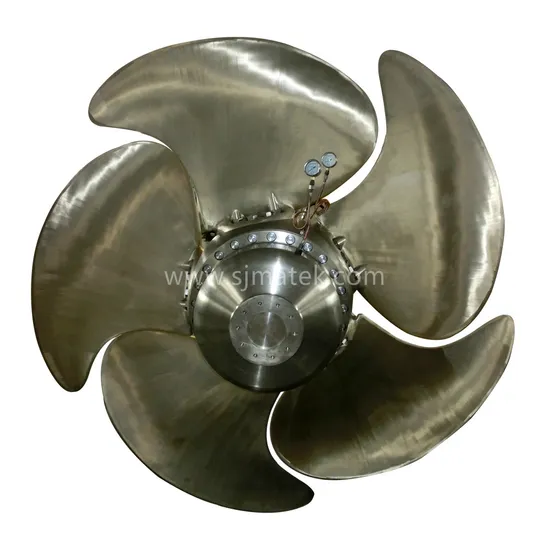

Marine Propulsion Equipment 5 Blade Variable Pitch Propeller

Product Description

Description
The controllable pitch propeller (CPP) can be efficient for the full range of rotational speeds and load conditions, since its pitch will be varied to absorb the maximum power that the engine is capable of producing. When fully loaded, a vessel obviously needs more propulsion power than when empty. By varying the propeller blades to the optimal pitch, higher efficiency can be obtained, thus saving fuel. A vessel with a VPP can accelerate faster from a standstill, and can decelerate much more effectively, making stopping quicker and safer. A CPP can also improve vessel maneuverability by directing a stronger flow of water onto the rudder.
Features
Excellence in Operability and Economy.
Minimizing noise and vibration levels.
Superiority in ship control.
Propeller can be driven by electric motor, diesel engine and hydraulic motor.
Hydraulic system is available.
Twin-engine incorporation is optional.
Fixed or varied pitch is optional.
Specifications

Type	Hub φ[mm]	Propeller Dia. [mm]	No. Of blades	Hub & Blades Weight[Kg]
SAP 38	380	1400	3 or 4	415
SAP 40	400	1480	3 or 4	420
SAP 42	420	1550	3 or 4	455
SAP 45	450	1650	3 or 4	600
SAP 46	460	1700	3 or 4	700
SAP 50	500	1850	4	800
SAP 53	530	1950	4	980
SAP 60	600	2200	4	1350
SAP 66	660	2400	4	1810
SAP 69	690	2550	4	2360
SAP 72	720	2650	4	2530
SAP 79	790	2900	4	3060
SAP 86	860	3150	4 or 5	4500
SAP 88	880	3250	4 or 5	5000
SAP 96	960	3500	4 or 5	5200
SAP 102	1020	3750	4 or 5	6710
SAP 111	1110	4100	4 or 5	8800
SAP 121	1210	4450	4 or 5	11400
SAP 132	1320	4850	4 or 5	13200

Application
Transportation vessel, tug boat, RO/RO ship, ocean engineering vessel, cargo liner, etc.
Workshop
Our company SJMATEK has two workshops and offce of 23, 000 square meters. It's assembly workshop is specially used for assembly and joint adjustment, the max sling load is 80 tons, the hoisting height is up to 20 meters.
The company has more than 20 sets of machining equipment, there are 18-meter lathes used for main propeller, big boring machine, CNC lathes, machining center, etc. Seven sets of testing instruments and equipment, including universal material testing machine, automatic pendulum impact testing machine, infrared thermometer, portable magnetic particle detector and ultrasonic detector. In addition, there are three test stands for rudder propeller, two test stands for tunnel thruster, two test stands for main propeller and one test stand for oil dispenser.
The existing production and testing equipment and facilities can meet the basic needs of product design, development, production and service.
Certificates of Classification Society
Certificates of all 12 classification societies of IACS ( International Association Of Classification Societies ) are available.
Project Cases
Our Key Customers
About Us
SUJING GROUP is the key national High-Tech & innovative pilot enterprise in China. It provides overall project solutions in the fields of air purification, energy saving, environmental protection, gas purification and marine propulsion equipment, etc. Only has it with 1, 100 staffs, but the annual output value is more than RMB 3 billion. The brand of "Sujing" is well-known in China. The product is not only hot in domestic market but also has been exported to over 20 countries such as USA, Russian, Japan etc.
SJMATEK is the subsidiary company of JIANGSU SUJING Group. We are professional manufacturer of special marine propulsion system, Its leading products are controllable pitch propeller (CPP), tunnel thruster (SCT-FP &SCT-CP) and rudder propeller (SZP/SZD/SLP/NAD/NAV).
As a design and manufacturer of the marine propulsion units, all the products are with mature techniques, we have a professional technical team with decades of experience in the design/prodction/quality control and the after-sale service.
We have years' abundant experience working with the state and governmental shipyards in China, CSSC, CSIS, design Institute, shipping owners, clients from European and East-south Asia. We have continuous collaboration with national & private ship design institutes as well.
Since the fountation of SJMATEK in 2013, we have supplied more than 200 vessels with our tunnel thruster/rudder propeller and CPP, All of them are working well. All the products can be customized according to the requirements and the certificate accordingly is available, such as CCS, ABS, BV, LR, DNV-GL, RS, etc.
Quality creates brilliance, Excellence defines Furture! We are looking forward to doing business with clients all over the world!

---
