Product Details
Product Description
Product Description
Application

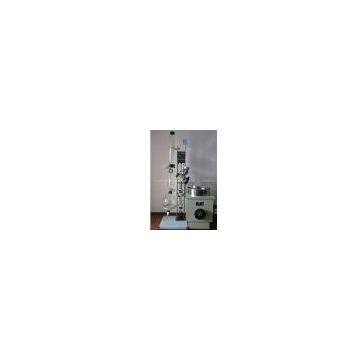

Rotary evaporator is mainly used for concentration,crystallization,drying,seperation and the recovery of enzymes in the field of pharmaceutical,chemical and bio-pharmaceutical.
The working principle
under the vacuum environment,thermostat heating,rotate the bottle with constant speed,then the material form a large area of thin film around the sidewall,highly evaporated,the enzyme steam then cooling by the condensor and recycling by the collecting bottle, greatly improve the efficiency of evaporation,especially for the concentration and purification of high temperature
Features:
1.Host: Rocker plate buttons, fast automatic lifting,0-150 mm
2.Speed: 20-200 rpm figures rev / min, power 40W
3.Heating bath: Teflon composite pot, power 1.5KW.
4.Temperature range: automatic temperature control, digital display water temperature, room temperature -100 ℃
5.Total power: 1.5KW, Voltage:-220V50HZ
6.Condensor: Vertical, high temperature resistance, high-quality glass, fine double-back integration,ball mouth condensor with ball mouth receiving flask , to achieve rapid loading and unloading
7.Feeder: valve type PTFE tube feeding tube sockets
8.Sealing: PTFE vacuum seal rubber gasket
Technical Parameters:
Model
| RE5002B
| temperature fluctuation
| ±1
|
PTFE Long Life Seal
| Yes
| Vacuum gauge
| Yes
|
Frequency converting
| Yes
| Bottom Discharge
| Yes
|
Continuous charge
| Yes
| Ball Mouth Receiving Flask
| No
|
Continuous receiving
| Yes
| Digital display for speed
| Yes
|
Automatic pressure valve
| Yes
| Low Noise
| Yes
|
Digital temp control
| Yes
| Evaporating Flask Release Device
| No
|
Glass screw connector
| Yes
| PTFE sleeve gasket
| Yes
|
Mouth for temp measure
| Yes
| Low Temperature cold trap
| Yes
|
PTFE discharging valve
| Yes
| Bump flask
| Yes
|
No spark
| Yes
| Reflux
| No
|
Flame-proof electric motor
| Optional
| Electric motor lift
| Optional
|
Heating Bath Lift
| Yes
| Ontinuou s charge
| Yes
|
If you are interested in our product,please feel free to contact us!Any inquiry is welcome!
>>
