Shenxi Mast Climber with CE Certification

Product Description

SHENXI Mast Climbing Work PlatformAre you in need of a safe and reliable solution for high-altitude construction and maintenance work? Look no further!
Our company is a leading manufacturer of top-quality mast climbing work platforms (MCWP).

	Single Mast Work PlatformModel: STC100 Rated load when the platform reaches its max. length: 1000 kg Max. carrying capacity: 3 persons Rated lifting speed: 8.3 m/min....
	Double Mast Work PlatformModel: STC100 Rated load when the platform reaches its max. length: 1400kg Max. carrying capacity: 6 persons Rated lifting speed: 8.3 m/min

Our STC mast climbing work platform is a good solution for work on facades of high and super high rise buildings. It is suitable for facade painting, cleaning, face brick mounting, curtain wall installation, welding of external wall steel structure, and more. The mast climbing work platform is especially great for construction applications where installation of suspended scaffold is impossible or high operating stability and safety is required. Features of Mast Climbing Work Platform
1. The length and width of our mast climbing work platform are adjustable, so as to suit building's different facade shapes. In addition, some parts of the work platform are telescopic. This enables the platform to be combined into concave-convex shape that fits the building external wall shape, thus better meeting the work requirement.
2. The use of our mast climbing work platform involves no base prefabrication, which greatly facilitates change of work locations.
3. This construction equipment is equipped with many protection devices.
a. The electrical system is designed with creepage, overheat and phase sequence protectors.
b. The work platform uses auto reset upper/lower limit switch and ultimate limit switch without auto reset function, which provide double protection to avoid overtravel at the top and bottom.
c. The overload sensor helps eliminate over-torque operation of the mast climbing work platform.
d. The double mast climbing work platform has an automatic leveling mechanism to automatically adjust the synchronous lifting operation of the two drive devices of the double mast, which can effectively control the work platform tilt. The vertical tilt angle is controlled within 2 degrees.

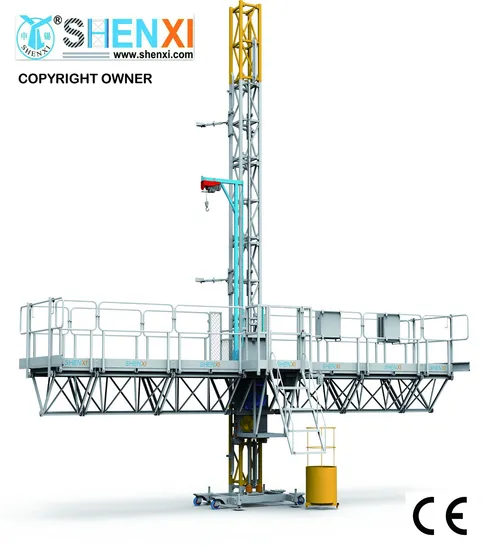

No.	Name
1	Mast section
2	Drive unit
3	Long balustrade
4	Short balustrade
5	Long platform
6	Short platform
7	Electrical system
8	Base frame
9	Ladder
10	Side frame
12	Mast tie
13	Electrical winch

Technical Parameters:

No.	Item	Single mast climbing work platform
1	Model	STC100
2	Rated load when the platform reaches its max. length	1000 kg
3	Max. carrying capacity	3 persons
4	Rated lifting speed	8.3 m/min
5	Max. operating height	150 m
6	The distance above the last tie-in	4.0 m
7	Max. length of platform	8.8 m
8	Basic platform width	1.5 m
9	Max. platform width after extension	2.5 m
10	The first tie-in from the ground	3~4 m
11	Tie-in spacing	About 6m
12	Standard section size	1508×500×500 mm
13	Motor model	TYHI100L1-4
14	Motor power	2*2.2kW

No.	Item	Double mast climbing work platform
1	Model	STC100
2	Rated load when the platform reaches its max. length	1400kg
3	Max. carrying capacity	6 persons
4	Rated lifting speed	8.3 m/min
5	Max. operating height	150 m
6	The distance above the last tie-in	4.0 m
7	Max. length of platform	23.6 m
8	Basic platform width	1.5 m
9	Max. platform width after extension	2.5 m
10	The first tie-in from the ground	3~4 m
11	Tie-in spacing	About 6m
12	Standard section size	1508×500×500 mm
13	Motor model	TYHI100L1-4
14	Motor power	4*2.2 kW

Our platforms are designed with safety as the top priority, featuring durable materials, adjustable height, and a stable working surface. With our MCWP, you can be confident that your workers will be able to perform their tasks with ease and safety.
What's more, our platforms are flexible and easy to install, so you can be up and running in no time. And with our extensive experience and expertise, we are able to provide you with customized solutions to meet your specific needs.
So why wait? Choose our MCWP and elevate your construction and maintenance work to new heights!
Contact us today to learn more.

---
