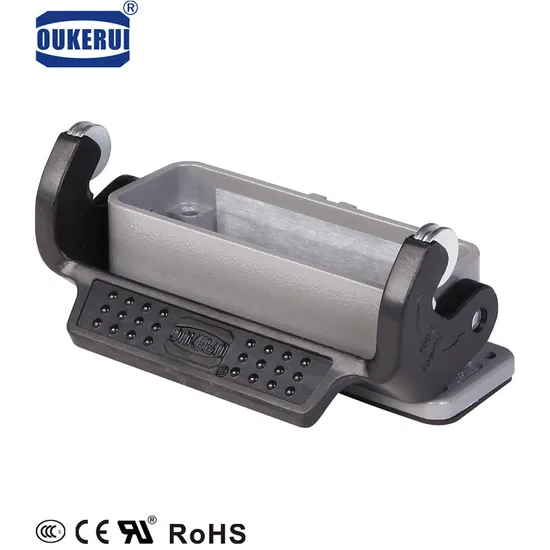

Heavy Duty Connector for Electricity Supply, Automation Control Cabinet and Other Industrial Machines

Negotiable 10 Sets (MOQ)

Basic Info.

Model NO.
HZW-HA-016M
Application
Transmission of Electrical Signals
Character
High Temperature Resistance
Production Process
Injection Molding
Shape
Rectangular
Certification
UL
Contact Material
Copper
Housing Material
Die-Casting Aluminum Alloy
Housing Coating
Anti-Corrosion Powder Spray
Working Environments
IP65 for Various Harsh Environments
Transport Package
Polybag and Double Cartons
Specification
CE, UL, ROHS
Trademark
Oukerui
Origin
China
HS Code
8536900000
Production Capacity
3000pieces Per Day

Product Description


Exploded view of Oukerui HDC Connectors


SPECIFICATION
Model No. HZW-HA-016-M Gender type Male
Pins 16+PE Contacts' surface processing technical Silver or Gold Plated
Terminal type Screw Terminal Mounting type Bulkhead/Surface/ cable to cable
Housings material Dia casting aluminum alloy Insert Block Top grade PC
Working Voltage 230/400V Working Current 10A
Rated Impulse Voltage 4KV Temperature Bearing Range -40ºC~+125ºC
International protection(IP) grade IP65 Pollution Degree 3
Flammability V0 Working Voltage Acc to UL/CSA 600V
Mechanical Life Span Min 500 times Trademark Oukerui
Warranty 1 Year Transport packing Carton
Origin China HS code 8530900000

SPECIFICATION OF CONTACT
Material Copper Alloy Surface Treatment Silver/Gold Plated
Terminal Screw/Crimp Terminal Wire Gauge 1.0-2.5mm2(AWG18-14)
Screw terminal tightening 0.5Nm Stripping length 7-9mm

WIDE APPLICATION IN VARIOUS INDUSTRIES
HDC CONNECTOR GROUP
