| Tech Spec | |

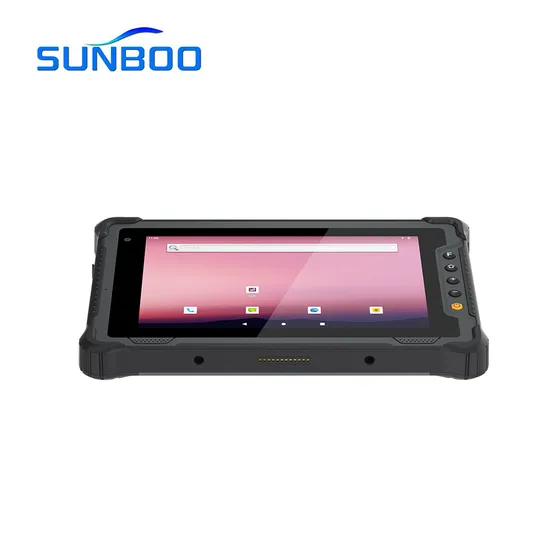

| Product Form | 10.1 inch Rugged Tablet |
| Material | PC+TPU |
| Dimension | 274.9*188.7*22.2mm |
| Weight | 1028g |
| Product Color | Gray (bottom shell gray, front shell gray) |
| CPU | RK3568, Quad-Cores, Up to 2.0GHz |
| GPU | Mali-G5 2-2EE |
| Memory | RAM 4GB LPDDR4x ROM 64GB EMMC |
| Operating System | Andriod 12 |
| Display | Type: IPS Size: 10.1 inch 16:10 Resolution: 800*1280 Brightness: 700cd/ |
| Touch Pannel | 10 points capacitive screen, G+G, Panda glass hardness 7H above, scratch resistant, COF, support GP930 stylus |
| Camera | Front 5.0MP Rear 8.0MP |
| Buttons | Power *1 Volume Key + *1 Volume Key - *1 Windows Home *1 F Key *1 (Barcode Scanning, connected to GPIO) |
| Speaker | 8Ω/1W Waterproof Speaker *2 |
| Microphone | Sensitivity: -42db, output impedance 2.2kΩ |
| Big Battery | Removable Li-polyment Battery 3.8V/10000mAh 11hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| Senssors | G_sensor |
| WIFI | WIFI 802.11 a/b/g/n/ac (2.4G+5G) |
| Bluetooth | BT5.0 (BLE) |
| 2G | GSM: 900/1800 |
| 3G | WCDMA: B1/5/8 |
| 4G | FDD-LTE: B1/B3/B5/B7/B8/B20 TDD-LTE: B40 |
| GPS | Support: GPS+Glonass+ Beidou; Capture sensitivity :-140 dBm; Cold start time: <50 seconds, hot start time: <5 seconds, GPS frequency: 1575.42MHz, Glonass frequency: 1602MHZ |
| Data Collection | 2D SCANNER Optional, Honeywell N3680 hard decode Optical resolution: 5mil Scanning speed: 50 times /s Support code: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse Maxicode, QR Code, MicroQR, QR Inverse, Aztec, Aztec Inverses, Han Xin, Han Xin Inverse |
| NFC Optional, ST21NFCDDBGARA9 (RK Series) Support ISO/IEC 14443A protocol, read distance: 3-5cm | |
