Granite Marble Stone Block Cutting Saw

Product Description

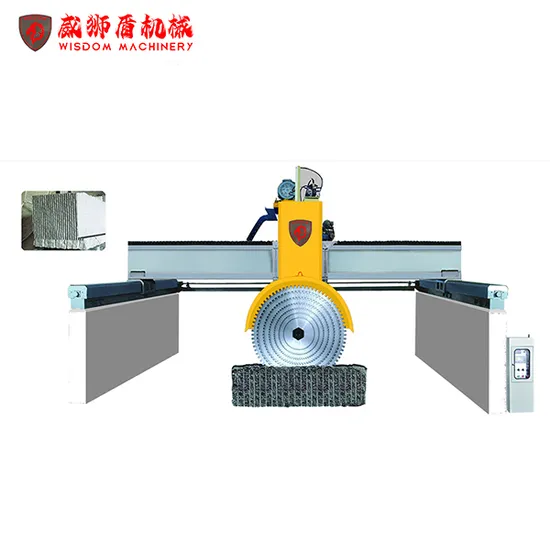

Multi blade block rock cutting machine
This machine use inverter to control the left-right feeding, it can adjust the speed according to different kind stones. It uses hydraulic lifting system, forward-backward slicing use high-precision screw nut driving, automatic slicing, main parts adopt imported materials; The block can be placed in the ground directly to save workable and its maintenance costs; Thus the whole machine is featured as high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability,easy-operating to suit specially cutting granite and marble block with high value.

Model	Unit	2500	2800	3000	3200
Main motor power	Kw	30-45	37-55	45-65	55-75
Blade diameter	mm	1600-2500	1600-2800	1600-3000	1600-3200
Main motor lift stroke	mm	1200	1300	1400	1500
Y axis stroke	mm	2200	2200	2200	2200
X axis stroke	mm	4500	4500	4500	4500
Blade number	nº	1-9	1-9	1-9	1-9
Dimension	mm	8000*3800*4200	8000*3800*4500	8000*3800*4800	8000*3800*5000
Weight	kg	12000	12500	13000	13500

Product Pictues
Loading
Company Intruction
You can always trust Wisdom
With more than 10 years committed to the stone machinery industry, Wisdom Machine is an experienced manufacturer.
Our machines are designed with American standard, and for maximum durability and high efficiency so that we can provide competitive stone machines for customers and continuously create value for customer, to achieve mutual benefit.
FAQ
1. What is your Warranty Time
We provide 1 years free parts warranty for our block cutting machine.
2. What is the MOQ?
1 Set
3. Can you make custimzed stone machine?
We have experienced and professional engineer, to make custmized stone machine is our advantage.
4. What is the lead time of your machine?
For standard machine, takes around 20-30 days, for custimzed machine, lead time will depends.

---
