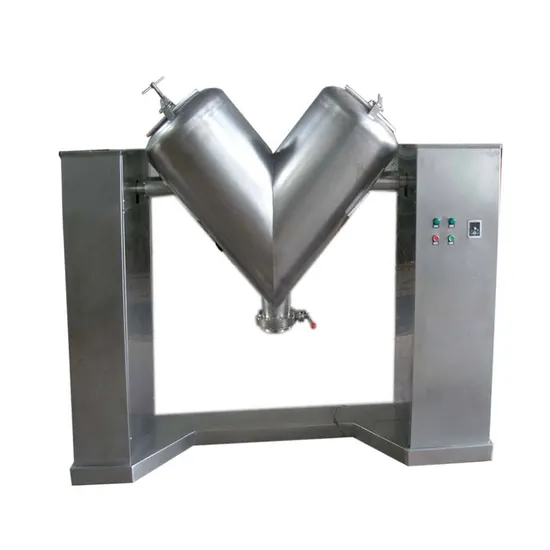

Mixing Machine V Type Mixer Blender

US$4,000.00-20,000.00 1 Set (MOQ)

Basic Info.

Model NO.

VH-Series

Application

Granules, Powder, Powder, Granules, 3D Mixing Machine

Application Area

Chemical, Daily Chemical, Food, Pharmaceutical, Pharmaceutical

Certification

CE, ISO, CE, ISO, GOST, Soncap, CCC, API, 3D Mixing Machine

Condition

New, New

Control System

Button Control

Cooling Method

Air Cooling

Heating Method

Electric Heating

Main Material

Stainless Steel

Mixing Capacity

5-4000L

Safety Features

Overload Protection

Speed Control

Single Speed

Speed Range

< 30 R/min

Stirring Type

Diving

Temperature Control

With Heating

Working

Convection Mixer, High Speed Mixer

Mixer Type

Powder Mixer

Layout Type

Verticle

Operating Type

Cycle Operating

Warranty

5 Years

Mixing Drum Shape

3D Mixing Machine

Item

3D Mixing Machine

Speed of Driving Shaft(R/Min)

0-8

Voltage

380V 50Hz Three Phase (Optional)

Max Loading Capacity(L)

160

Total Weight(Kg)

500

Overall Dimensions(mm)

1000*1400*1200

Max Loading Capacity(Kg)

100

Barrel Capacity

100

Power Kw

1.5

Brand

Ltpm China

Transport Package

Wooden Case

Specification

CE, GMP, SGS, etc.

Trademark

LTPM China

Origin

Zhejiang

HS Code

84743900

Production Capacity

25-100 Sets/Month

Product Description

Application:
The mixer is used for mixing the dry material grains in the medical, chemical, food, metallurgical and other industries.
The mixing barrel structure is unique. The mixing efficiency is high. There is no corner that can not be reached. The barrel uses the stainless steel and its internal and external walls are polished. The outside appearance is beautiful. The mixing is uniform, with wide application. The mixer meets GMP standard.

Feature:

1. It is used to mix the dry-powder, granular materials with good liquidity.
2. It consists of two asymmetric cylinders. The materials can flow as vertical and horizontal direction. The mixing uniformity will be above 99%.
3. It adopts vacuum feeding under sealing state. There's no driving structure inside and be clean, no dead corner in according with GMP standard.

Spec\item	Total volume L	Working cpacity L	Working capacity kg	Rotating speed rpm	Power kw	Weight kg
VH-50	50	25	15	25	0.55	500
VH-150	150	75	45	20	0.75	650
VH-300	300	150	90	20	1.1	820
VH-500	500	250	150	18	1.5	1250
VH-1000	1000	500	300	15	3	1800
VH-1500	1500	750	450	12	4	2100
VH-2000	2000	1000	600	12	5.5	2450
VH-3000	3000	1500	900	9	5.5	2980
VH-4000	4000	2000	1200	9	7.5	3300
VH-5000	5000	2500	1500	8	7.5	3880
VH-6000	6000	3000	1800	8	11	4550
VH-8000	8000	4000	2400	6	15	5200
VH-10000	10000	5000	3000	6	18.5	6000

Q: What price terms you offer? A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.
Q: What payment terms you take?
A: TT, LC, other terms are also workable.
Q: Will you help with installation and stuff training?
A: Yes,we can send our engineers to your place to guide the installation and train your workers if you need, but the buyer should
bear our technician's round tickets, accomodation, food and subsidiary USD100/day.
Q: How can I visit your factory?
A: Our factory is located in Ruian city Zhejiang Province.
Just let us know your schedule in advance and we will arrange everything for you!
Any other doubts about our machine, please feel easy to contact with us.
