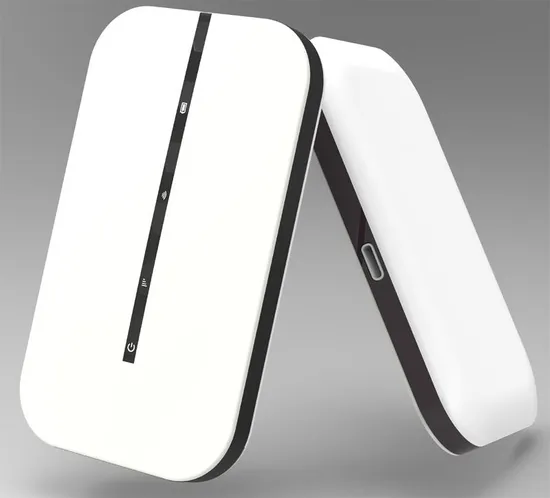

4G LTE Mifi Mini Router Support LTE Cat4 FDD-LTE B2/B4/B5/B7/B28/B66

Product Description

4G LTE MIFI MINI Router support LTE CAT4 FDD-LTE B2/B4/B5/B7/B28/B66 Detailed Photos Product Parameters
HMF100 4G CAT 4 cellular portable router is a wireless communication product developed based on 3G/4G LTE network requirements. Support 3G/4G LTE global wireless network standard and frequency bands. Meet 4G LTE CAT 4 high-speed wireless network access. The theoretical maximum downlink bandwidth of 4G LTE is 150Mbps, and the theoretical maximum uplink bandwidth is 50Mbps. Supports 802.11AX,WIFI 6, 2.4GHz function, to meet the access and shared Internet access of more than 10 users' WIFI hotspot. Provide stable, high-speed wireless broadband access for home and business users Product Key Features Product features. Wireless Mobile Broadband 3G / 4G LTE Connection. Supports 3G/4G LTE global frequency bands. Supports 802.11AX, WIFI 6, 2.4GHz frequency band. Supports 1*USB2.0 port to charge. Supports Multiple VPN tunnels for data encryption. Designed for industrial usage USB power Input Range. DC +5V/1A Industrial design for harsh environment. ABS fireproof plastic material shell. Easy to use and easy maintenance User friendly web interface for user interaction. Supports Central Management Platform. Supports local web UI and remote FOTA update firmware. Operating system Built-in Linux 3.4 operating system. Supports user secondary application development.

3G/4G/5G data connectivity	It provides data connectivity on LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks.
3G/4G/5G Frequency bands	Version E. FDD-LTE B1/B3/B7/B8/B20/B28 TD-LTE B38/B40/B41 WCDMA B1/B8 Version LA. FDD-LTE B2/B4/B5/B7/B28/B66 TD-LTE B38/B40/B41 WCDMA B2/B5
Antennas	2* 2 MIMO 4G LTE internal directional antennas, with 50 Ω impedance.
SIM card	Supports 1* SIM slots, 1.8V / 3V . Or 1* eSIM card. ( Optional )
CPU	ARM Cortex A7,1G, SANECHIPS ZX297520 V3
MEMORY	FLASH 16MByte, DDR2 128MByte
Hardware interface	1*USB2.0 port
Watchdog	Built-in watchdog feature
LED status indicator	Reset, WPS
Bridge
Power Supply
Temperature
WLAN
Wireless Security	Supports WPA, WPA3,WPAI, WEP, TKIP encryption
WIFI hotspot Users	Supports more than 32 users to share WIFI access to the Internet.
Protocol	Supports PPTP,L2TP,IPSEC VPN,GRE,TCP,UDP,DHCP,HTTP,DDNS,TR-069,HTTPS,SSH etc protocol
Embedded system	OpenWRT 19.07
VPN Feature	Supports Open VPN, IPSEC VPN,PPTP,L2TP etc VPN feature
Web GUI	HTTP, Firmware Upgrade
Firmware update	Supports local WebUI and remote OTA update firmware
System Assurance	Supports system automatic detection mechanism, automatic recovery of system abnormality or crash.
Multiple APN	Supports multiple APN access network

---
