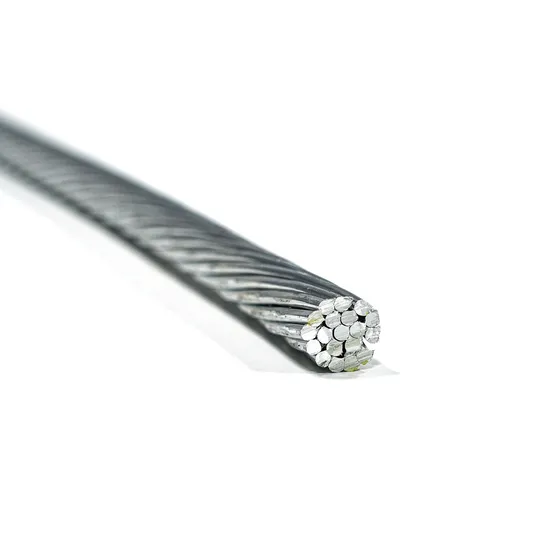

AAC AAAC ACSR Bare Aluminum Conductor

Product Description

The twisted wire is realized by rotating the twisted single wire around the twisted wire axis at equal angular speed and moving the twisted wire forward at uniform speed. It is suitable for the occasions where the working frequency is high and the skin effect and proximity effect loss of single strand wire are too large. The use of stranded wire can reduce the operating temperature, compared with the same cross-sectional area of single strand wire, stranded wire has higher mechanical, flexibility.
Aluminum stranded wire: Advantages: light conductor weight, good electrical conductivity.
Application: Used in the distribution wire of overhead power line with less force.

All Aluminium Alloy Conductors ASTM B 399
AREA		Stranding and wire diameter	Approx. overall diameter	Weight	Nominal Breaking Load	Nom. DC resistance at 20 Deg.
Nominal	Actual
AWGorMCM	(mm2)	(mm)	(mm)	(kg/km)	(kN)	(ohm/km)
6	13.3	7/1.554	4.67	37	4.22	2.5199
4	21.15	1/1.961	5.89	58	6.71	1.5824
2	33.63	7/2.474	7.42	93	10.68	0.9942
1/0	53.48	7/3.119	9.36	148	16.97	0.6256
2/0	67.42	7/3.503	10.51	186	20.52	0.4959
3/0	85.03	7/3.932	11.8	234	25.86	0.3936
4/0	107.23	7/4.417	13.26	296	32.63	0.3119
250	126.66	19/2.913	14.57	349	38.93	0.2642
300	152.1	19/63.193	15.97	419	46.77	0.2199
350	177.35	19/3.447	17.24	489	52.25	0.1887
400	202.71	19/3.686	18.43	559	59.74	0.1650
450	228	19/3.909	19.55	629	67.19	0.1467
500	253.35	19/4.120	20.6	698	74.64	0.1321
550	278.6	37/3.096	21.67	768	83.80	0.1202
600	303.8	37/3.233	22.63	838	91.38	0.1102
650	329.25	37/3.366	23.56	908	97.94	0.1016
700	354.55	37/3.493	24.45	978	102.20	0.0944
750	380.2	37/3.617	25.32	1049	109.60	0.0880
800	405.15	37/3.734	26.14	1117	116.80	0.0826
900	456.16	37/3.962	27.73	1258	131.50	0.0733
1000	506.71	37/4.176	29.23	1399	146.10	0.0660

---
