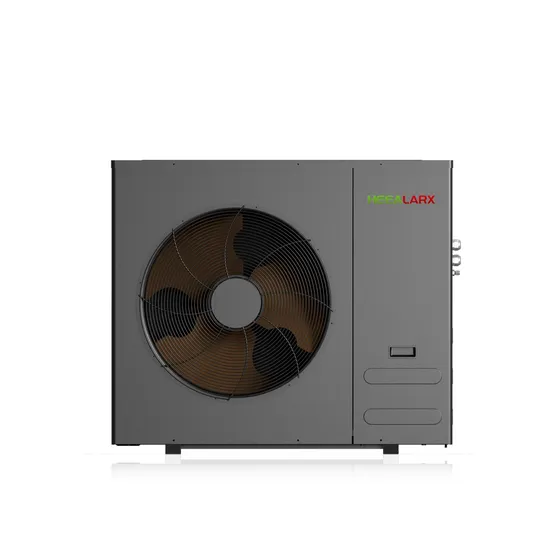

UK Mcs Certified a+++ High Efficient Monoblock Inverter Air Water House Heating Cooling Hot Water Heat Pump

Product Description

Full DC Inverter Evi cooling and heating heat pump of HEEALARX adopts Mistubishi twin rotary inverter type compressor, Top brand plate heater exchanger, dc inverter fan motor, can operate steadily in -35 centigrade low ambient temperature, for house heating, floor heating, cooling and also hot water for both house and office building.
HEEALARX Monoblock Inverter Air to Water House Heating Heat Pump have both options of 220v and 380v.
Spec for HEEALARX Monoblock Inverter Air Water House Heating Heat Pump 220V

Full Inverter Air Water House Heating Heat Pump Monobloc Type
Model	/	VS90-DC1	VS120-DC1	VS150-DC1	VS180-DC1	VS220-DC1
Power Supply	/	220-240V~ 50Hz
Heating Condition-Ambient Temp.(DB/WB):7/6ºC,Water Temp.(In/Out):30/35ºC
Heating Capacity Range	kW	4.2~9.0	5.5~12.0	6.8~15.0	8.5~18.0	9.5~22.0
Heating Power Input Range	kW	0.87~2.14	1.12~2.86	1.42~3.66	1.70~4.23	1.90~5.23
Heating Current Input Range	A	3.95~9.73	5.09~13.0	6.45~16.6	7.73~19.2	8.64~23.7
Heating Condition-Ambient Temp.(DB/WB):7/6ºC,Water Temp.(In/Out):40/45ºC
Heating Capacity Range	kW	4.5~9.2	5.5~12.0	7.0~15.4	9.2~19.0	10.5~22.0
Heating Power Input Range	kW	1.22~2.64	1.37~3.28	1.82~4.35	2.36~5.20	2.53~6.28
Heating Current Input Range	A	5.55~12.0	6.23~14.9	8.27~19.8	10.7~23.6	11.5~28.5
Cooling Condition-Ambient Temp.(DB/WB):35/24ºC,Water Temp.(In/Out):12/7ºC
Cooling Capacity Range	kW	4.0~7.0	4.5~9.0	5.5~11.5	8.5~14.5	9.0~17.0
Cooling Power Input Range	kW	1.18~2.50	1.25~3.22	1.55~4.11	2.43~5.18	2.50~5.67
Heating Current Input Range	A	5.36~11.4	5.68~14.6	7.05~18.7	11.0~23.5	11.4~25.8
Cooling Condition-Ambient Temp.(DB/WB):35/24ºC,Water Temp.(In/Out):23/18ºC
Cooling Capacity Range	kW	6.0~9.4	6.5~11.5	9.0~15.0	11.0~19.0	13.0~23.0
Cooling Power Input Range	kW	1.30~2.35	1.42~2.87	1.96~3.70	2.31~4.63	2.68~5.61
Heating Current Input Range	A	5.91~10.7	6.45~13.0	8.91~16.8	10.5~21.0	12.2~25.5
Max. PowerInput	kW	3.00	3.70	5.00	6.00	7.20
Max. Current Input	A	13.60	16.80	22.70	27.30	32.70
ErP Level(35ºC)	/	A+++	A+++	A+++	A+++	A+++
ErP Level(55ºC)	/	A++	A++	A++	A++	A++
Water Flow	m³	1.6	2.1	2.6	3.1	3.8
Refrigerant/Proper Input	kg	R32/1.40kg	R32/1.80kg	R32/1.80kg	R32/2.05kg	R32/2.60kg
Equivalent CO2	TON	0.94	1.21	1.21	1.38	1.75
Sound Pressure At Rated Flow (1m)	dB(A)	42	43	45	46	47
Sound Power LevelEN12102 (35ºC)	dB(A)	57	59	60	61	62
Cabinet Type	/	Galvanized sheet
Compressor Brand	/	Panasoni		GMCC	Panasoni
Fan Motor Type	/	DC motor
Operating Ambient Temperature	ºC	-30~43
Water Connection	inch	1	1	1	1	1.2
Net Weight	kg	74	78	91	101	124
Gross Weight	kg	89	93	107	117	144
Unit Dimensions(L/W/H)	mm	1000×440×765		1100×440×945		1005×440×1400
Shipping Dimensions(L/W/H)	mm	1178×515×920		1278×515×1100		1182×515×1555
The above data is for reference only;specific data is subject to the product nameplate.

Spec for HEEALARX Monoblock Inverter Air Water House Heating Heat Pump 380v

Full Inverter Air Water House Heating Heat Pump Monobloc Type
Model	/	VS90-DC	VS120-DC	VS150-DC	VS180-DC	VS220-DC	VS250-DC	VS300-DC	VS340-DC
Power Supply	/	380-415V/3N~ /50Hz
Heating Condition-Ambient Temp.(DB/WB):7/6ºC,Water Temp.(In/Out):30/35ºC
Heating Capacity Range	kW	4.2~9.0	5.5~12.0	6.8~15.0	8.5~18.0	9.5~22.0	12.0~25.0	13.0~30.0	15.0~34.0
Heating Power Input Range	kW	0.87~2.14	1.12~2.86	1.42~3.66	1.70~4.23	1.90~5.23	2.42~5.95	2.65~7.23	3.06~8.29
Heating Current Input Range	A	1.58~3.89	2.04~5.20	2.58~6.65	3.09~7.69	3.45~9.51	4.40~10.8	4.82~13.1	5.56~15.1
Heating Condition-Ambient Temp.(DB/WB):7/6ºC,Water Temp.(In/Out):40/45ºC
Heating Capacity Range	kW	4.5~9.2	5.5~12.0	7.0~15.4	9.2~19.0	10.5~22.0	12.5~25.2	13.7~30.0	16.0~33.2
Heating Power Input Range	kW	1.22~2.64	1.37~3.28	1.82~4.35	2.36~5.20	2.53~6.28	3.09~7.28	3.47~8.96	4.10~10.2
Heating Current Input Range	A	2.22~4.80	2.49~5.96	3.31~7.91	4.29~9.45	4.60~11.4	5.62~13.2	6.31~16.3	7.45~18.5
Cooling Condition-Ambient Temp.(DB/WB):35/24ºC,Water Temp.(In/Out):12/7ºC
Cooling Capacity Range	kW	4.0~7.0	4.5~9.0	5.5~11.5	8.5~14.5	9.0~17.0	10.0~19.5	11.0~22.0	12.5~25.0
Cooling Power Input Range	kW	1.18~2.50	1.25~3.22	1.55~4.11	2.43~5.18	2.50~5.67	2.78~6.72	3.10~7.72	3.47~8.60
Heating Current Input Range	A	2.15~4.55	2.27~5.85	2.82~7.47	4.42~9.42	4.55~10.3	5.05~12.2	5.64~14.0	6.31~15.6
Cooling Condition-Ambient Temp.(DB/WB):35/24ºC,Water Temp.(In/Out):23/18ºC
Cooling Capacity Range	kW	6.0~9.4	6.5~11.5	9.0~15.0	11.0~19.0	13.0~23.0	14.0~26.0	14.5~28.5	17.6~32.0
Cooling Power Input Range	kW	1.30~2.35	1.42~2.87	1.96~3.70	2.31~4.63	2.68~5.61	2.92~6.34	3.05~7.03	3.67~7.72
Heating Current Input Range	A	2.36~4.27	2.58~5.22	3.56~6.73	4.20~8.42	4.87~10.2	5.31~11.5	5.55~12.8	6.67~14.0
Max. PowerInput	kW	3.00	3.70	5.00	6.00	7.20	8.50	10.00	12.00
Max. Current Input	A	13.60	16.80	22.70	27.30	32.70	15.50	18.20	21.80
ErP Level(35ºC)	/	A+++	A+++	A+++	A+++	A+++	A+++	A+++	A+++
ErP Level(55ºC)	/	A++	A++	A++	A++	A++	A++	A++	A++
Water Flow	m³	1.6	2.1	2.6	3.1	3.8	4.3	5.2	5.8
Refrigerant/Proper Input	kg	R32/1.40kg	R32/1.80kg	R32/1.80kg	R32/2.05kg	R32/2.60kg	R32/3.1kg	R32/3.2kg	R32/4.0kg
Equivalent CO2	TON	0.94	1.21	1.21	1.38	1.75	2.09	2.09	2.7
Sound Pressure At Rated Flow (1m)	dB(A)	42	43	45	46	47	49	51	53
Sound Power LevelEN12102 (35ºC)	dB(A)	57	59	60	61	62	64	66	68
Cabinet Type	/
Compressor Brand	/	Panasonic		GMCC	Panasonic
Fan Motor Type	/
Operating Ambient Temperature	ºC
Water Connection	inch	1	1	1	1	1.2	1.2	1.2	1.5
Net Weight	kg	74	78	91	101	124	153	158	185
Gross Weight	kg	89	93	107	117	144	175	180	210
Unit Dimensions(L/W/H)	mm	1000×440×765		1100×440×945		1005×440×1400	1100×460×1440		1230×545×1525
Shipping Dimensions(L/W/H)	mm	1178×515×920		1278×515×1100		1182×515×1555	1278×535×1595		1408×620×1680
The above data is for reference only;specific data is subject to the product nameplate.

Parts we are using:
HEEALARX Monobloc full inverter evi air water cooling and heating heat pump adopts first class components to ensure that the unit can work in good conditions under low ambient temperature of -35 centigrade with high cop and low noise level. The key components we are using is: Full inverter twin rotary compressor from MITSUBISHI, PANASONIC or GMCC, inverter fan motor, AL-FA LA AL plate heater exchanger, digital touch controller with wifi.
Wide product range:
HEEALARX Monoblock full inverter evi air water cooling and heating heat pump has wide product range capacity from 9kw, 12kw, 15kw, 17.kw, 28kw and also 32kw can meet different requirement of house heating and cooling both in office and home.
Advantage of HEEALARX full DC Inverter air to water heat pump evi model monobloc type:
1. Full DC Inverter technology:
With Panasonic twin rotary compressor and also panasonic brushless inverter fan motor.
2. Evi Technology:
Evi technology is adopted so that unit can function well under low ambient temperature of -30 centigrade low temperature.
3. Wifi Control:
Wifi control is applicated in our full dc inverter heat pump system.
4. Warranty:
3 years on the whole system.
5. Low noise level
Special design of air system which can work in super quiet condition with low noise level of 39db.
6. Modern Touch Controller
Modern touch controller can intergrate with indoor thermostat.
With 36-months long warranty, HEEALARX Monoblock DC Inverter Air Source Heat Pumps are designed for sanitory hot water, house heating and cooling with lowest ambient temperature -35ºC. They have the below main features:
* Higher Energy Efficiency
Achieving the ERP A+++ energy class, our DC inverter heat pumps save energy by more than 30% compared with other ordinary air source heat pumps. The maximum COP our DC inverter heat pumps reaches 5.65!
* Low Noise
With Panasonic rotary compressor and DC inverter brushless fans, our DC inverter heat pumps adopt new noise reduction measures so that the sound of the unit is controlled at a satisfactory level.
* Smart WIFI Control
The intelligent controller with RS485 WIFI APP is adopted to realize the linkage control between the heat pump unit and the terminal application end. With the Cascade function, multiple units can be controlled with one panel.
* Wide Voltage Application
The DC Inverter Air Source Heat Pumps operate normally within the voltage range of 150V-260V (1ph) or 330V-450V (3ph) to reduce the impact of voltage instability on the environment.
* Intelligent Defrosting
The smart defrosting technology makes optimal defrosting decisions to minimize energy consumption and improve customer satisfaction.
* Modern touch controller
Modern touch controller can intergrate with indoor thermostat.
Installation Diagram for Reference:
