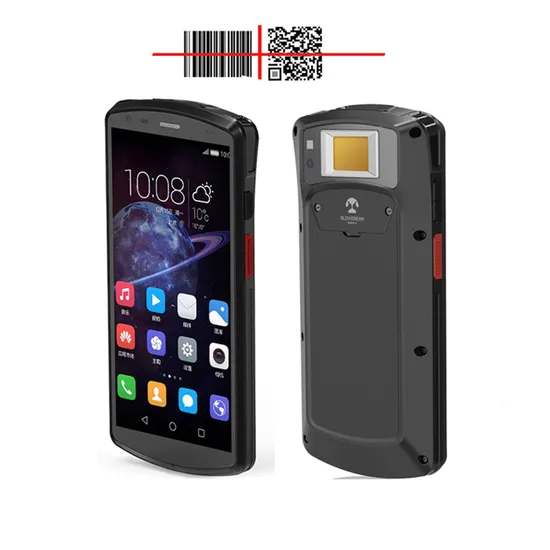

Handheld Industrial PDA Barcode Scanner Android with Fingerprint Reader

Product Description

1) Default Configuration: Wifi + BT + 4G (FDD / TDD-LTE) + Phone + GPS + 8M Camera + Google Player Store 2) 1D, 2D, NFC (13.56MHZ), fingerprint, OTG, Cradle For Option; 3) Compact And Portable Ergonomic Design With Wrist Strap 4) Safedroid OS (Android8.1) Highly Optimized Android Operating System. 5) 8.0M Mega Pixel Camera. 6) High Capacity 4200mAh Large Capacity Battery For Critical Requirements; 7) Pogo Pin Interface For Convenient Charging With Optional Charge Cradle. 8) Industrial Rugged Design, Water-Proof And Protection Grade (IP66); 9)About Shipment: We offer DHL shipping usually, but in emergency, we can choose another shipping option. Normally : DHL shipment: USA, Britain, Germany, Italy, Belgium, France, Spain and soon,EMS shipment :Russia, Saudi Arabia, Brazil and so on. After your confirm the CI and shipment ways , we will start to arrange the shipment. If you have any requestment for shipping, Pls connect with us. Thank you.
If you wanta buy sample for testing or questions, please contact me :

Judy

Structural Parameter
Dimensions	Dimensions 159mm×75mm×18mm
Weight	<500g
Display Screen	5.7 inch IPS color display with resolution 720*1440
Expand Port	SIM card, micro SD (TF) Card
Communication Interface	Type-C USB
Input Mode	Standard Stylus, Handwriting, touching input or keyboard input,Function key×4
Battery Capacity	Rechargeable polymer battery (3.8V 4200mAh) removable
Frequency	8ohm 1W speaker
Key	Silicone button
Performance Parameter
OS	Android 9.0
CPU	Cortex-A53 Octa-core 64-bit 2.0GHz high-performance processor
RAM	3G/4G RAM
Flash ROM	Standard 32G/64G NAND Flash Storage
	micro SD/TF port (Max up to 128G)
Data Communication
WI-FI	Dual-band 2.4GHz / 5GHz, Supporting IEEE 802 a/b/g/n/ac protocol
FDD/TDD-LTE 4G	FDD:B1/B3/B4/B7/B8/B12/B20 TDD:B38/B39/B40/B41
WCDMA 3G	WCDMA(850/900/1900/2100MHz)
GSM 2G	GSM(850/900/1800/1900MHz
Bluetooth	Support Bluetooth 2.1+EDR/3.0+HS/4.1+HS Transmission distance 5-10 meters
Standard Modules
Rear camera	13MP HD camera,Support auto focus, Flash, Anti-shake, Macro shooting
Front camera	2MP color camera
GNSS	Support GPS, Galileo, Glonass, Beidou
Operating Environment
Operating	-20°C to 55°C
Storage Temperature	-40°C to 70°C
Environment Humidity	5%RH-95%RH(no condensation)
Drop Specifications	6 sides Supports 1.5 meters drops and 30 times to the concrete within the operating temperature
Roll Specifications	500×0.5m rolling for 6 sides
Sealed Environment	IP66
2D CMOS (OPTIONAL)
CMOS Scanner	Honeywell N3601 Honeywell N6603
The Sensor Resolution	752(level)×480(vertical)pels(gray level)
Ambient Light	All dark 9000ft.candles/96900 lux
focus element (VLD)	655nm ± 10nm
Support bar code type	PDF417,MicroPDF417,Composite, RSS,TLC-39, Datamatrix, QR code, micro QR code,Aztec, MaxiCode; Postal Codes: US PostNet,US Planet, UK Postal, Australian Postal, JapanPostal Dutch Postal (KIX)3
Fingerprint recognition (Optional)
Sensor	TCS2SS
Sensor type	Capacitive Sensor
Function	Enrollment, compare, deletion etc.
Resolution	508DPI
Memory	1,000 PCS fingerprints
ID card identification (Optional)
Security module	ID verification system dedicated module
Distance	0~5cm
Frequency	13.5MHz±7kHz
NFC Reader (Optional)
Frequency	13.56MHz
Protocol	Support ISO14443A/B, 15693 agreement
Range	2-5cm

High-speed operation performance:
With android 9.0 operating system, matching 64 bit Octa-core 2.0GHz high speed processor with prefect compatibility and computing capability, high-speed operating efficiency is suitable for strict application requirement.
Excellent identification ability :
Fully support 2D barcode scanning,NFC(optional).
Fingerprint recognition (Optional):
Configure TCS semiconductor sensor with live identification technology
ID card identification (Optional):
ID verification system dedicated module
Convenient appearance design:
Slim and ergonomics design, it is convenient and comfortable for holding and carrying. 5.7 inch IPS (720x1440) Work even with water or Gloves.
Abundant means of data transportation:
2G,3G,4G,Wifi,Bluetooth,etc.
Industrial grade durability:
IP66 industrial grade, solid and light body can bear the height of 1.2m dropping and 1000 times tumbled within the scope of 0.5m. Waterproof,dustproof provide long time using without fatiguet.
HD Camera:
Front 2 megapixel camera,Rear 13 megapixel camera, is convenient for client to collect all kind of images and video.
Multiple extensions:
Support GPS , AGPS and Beidou compass navigation.
Always-available wireless connection:
Supports 802.11 a/b/g/n full-band wireless communications and maintains real-time connection with the system to ensure high efficient operation.

---
