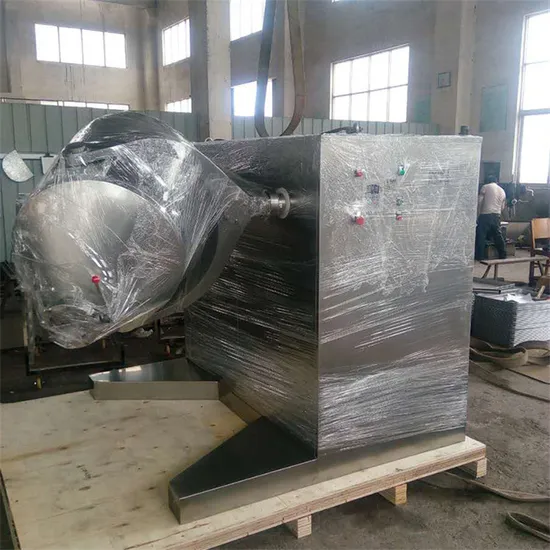

Industrial High Efficient Three Dimensional Motions Swing Harmaceutical Chemical Pharmaceutic Dry Powder 3D Mixer

Negotiable 1 set (MOQ)

Basic Info.

Application
Powder, Granules, Powder
Application Area
Agricultural Chemicals, Chemical
Certification
CE, ISO
Condition
New
Stirring Type
Forced
Working
Convection Mixer
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating type
Cycle Operating
Warranty
1-2years
Transport Package
Woodencase
Specification
SBH-50
Trademark
linlu
Origin
China
HS Code
8479820090
Production Capacity
10-20kg

Product Description

3D Mixer Technical parameters
Model SYH-5 SYH-10 SYH-50 SYH-100 SYH-200 SYH-400 SYH-600
Volume (L) 5 10 50 100 200 400 600
Max load (L) 4 8 40 80 160 320 480
Max load (kg) 3 6 30 60 120 240 360
Rotation (rpm) 0-12 12 0-12 12 12 0-12 0-12
Motor (kW) 0.37 0.55 1.1 1.5 2.2 4 5.5
Weight (kg) 35 50 100 300 450 600 850
Dimension (m) 0.6*0.5*0.7 0.6*0.5*0.7 0.8*1.1*1 1.2*1.6*1.3 1.4*1.8*1.3 1.6*2*1.6 1.8*2.5*1.8
Introduction It has a multi-directional movement, the material inside has no centrifugal force, no specific gravity segregation or stratification or accumulation phenomenon, the mixing rate can reach 99.9% or more, it is the ideal mixer for a variety of products. Large cylinder loading rate, up to 90% (ordinary mixer is only 40%), high efficiency, mixing time is short. Arc is all over the cylinder body after precise polishing. Application Used for high uniformity mixing of powdered and granular materials in the field of pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy and even the defense industry and various scientific research units . Working principle Driven by the driving shaft, the loaded cylinder body can make a complex movement such as translation, rotation and tumbling to make the material move in three directions along the cylinder to realize the flow, diffusion, accumulation and mixing of various materials, in order to achieve the purpose of uniform mixing, to avoid specific gravity segregation and stratification phenomenon resulted from general mixer due to centrifugal force.
