One Hole Code Conductor Long Barrel No Inspection Window Copper Cable Lug

US$0.05-3.00 1 Piece (MOQ)

Basic Info.

Model NO.
One Hole Copper Lug
Application
Conduct Electricity, Transmission of Electrical Signals
Character
Environmental Protection
Species
Terminal
Production Process
Injection Molding
Shape
Others
Certification
UL, RoHS
Product Line
Copper Lug
Product Type
One Hole Copper Lug
OEM
Acceptable
Transport Package
Plastic Bag, Carton, Pallet
Trademark
Maxdao
Origin
China
Production Capacity
100000pieces/Month

Packaging & Delivery

Package Size
5.00cm * 5.00cm * 5.00cm
Package Gross Weight
0.050kg

Product Description

Product Description

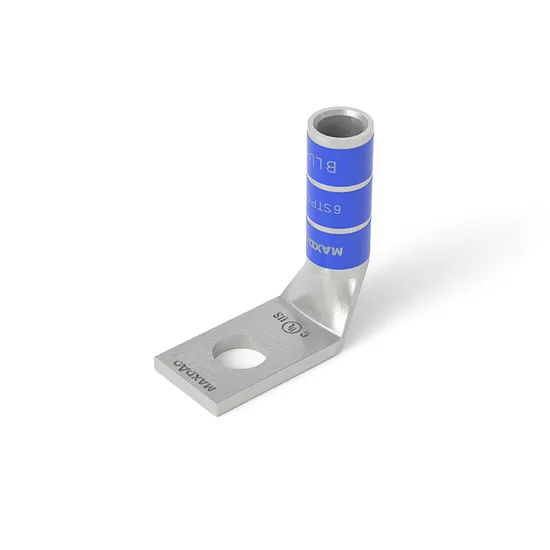

ONE HOLE CODE CONDUCTOR LONG BARREL-NO INSPECTION WINDOW
UL Listed Copper Compression Lug Color-Coded for Easy Identification Used for Power and Grounding Application
Tang Width Barrel length Tang Thickness Over all length Inner diameter Outer
diameter
ITEM # Part No# DIE COLOR WIRE SIZE BOLT SIZE New C New B New T New L New ID New OD
STR mm² ±0.04 ±0.06 ±0.02 ±0.06 ±0.02 ±0.02
1 MDL8-10F RED 8 AWG 10 #10 0.41 0.81 0.08 1.07 0.18 0.27
2 MDL8-14F RED 8 AWG 10 1/4 0.44 0.81 0.08 1.07 0.18 0.27
3 MDL6-08F BLUE 6 AWG 16 #8 0.42 1.12 0.09 1.48 0.20 0.29
4 MDL6-10F BLUE 6 AWG 16 #10 0.42 1.12 0.09 1.48 0.20 0.29
5 MDL6-14F BLUE 6 AWG 16 1/4 0.41 1.12 0.09 1.48 0.20 0.29
6 MDL6-56F BLUE 6 AWG 16 5/16 0.52 1.12 0.07 1.49 0.20 0.29
7 MDL6-38F BLUE 6 AWG 16 3/8 0.58 1.12 0.06 1.49 0.20 0.29
8 MDL4-10F GRAY 4 AWG 25 #10 0.50 1.12 0.09 1.53 0.26 0.35
9 MDL4-14F GRAY 4 AWG 25 1/4 0.50 1.12 0.09 1.53 0.26 0.35
10 MDL4-56F GRAY 4 AWG 25 5/16 0.52 1.12 0.12 1.53 0.26 0.35
14 MDL2-10F BROWN 2 AWG 38 #10 0.60 1.25 0.11 1.74 0.31 0.42
15 MDL2-14F BROWN 2 AWG 38 1/4 0.60 1.25 0.11 1.74 0.31 0.42
16 MDL2-56F BROWN 2 AWG 38 5/16 0.60 1.25 0.11 1.74 0.31 0.42
17 MDL1-10F GREEN 1 AWG 50 #10 0.68 1.38 0.10 2.00 0.36 0.46
18 MDL1-14F GREEN 1 AWG 50 1/4 0.68 1.38 0.10 2.00 0.36 0.46
19 MDL1-56F GREEN 1 AWG 50 5/16 0.68 1.38 0.10 2.00 0.36 0.46
20 MDL1/0-10F PINK 1/0 AWG 60 #10 0.75 1.38 0.12 2.15 0.39 0.52
21 MDL1/0-56F PINK 1/0 AWG 60 5/16 0.75 1.38 0.13 2.15 0.39 0.52
22 MDL1/0-38F PINK 1/0 AWG 60 3/8 0.75 1.38 0.12 2.15 0.39 0.52
23 MDL1/0-12F PINK 1/0 AWG 60 1/2 0.83 1.38 0.11 2.15 0.39 0.52
24 MDL2/0-38F BLACK 2/0 AWG 70 3/8 0.83 1.50 0.12 2.30 0.45 0.56
25 MDL3/0-38F ORANGE 3/0 AWG 95 3/8 0.91 1.50 0.13 2.35 0.51 0.63
26 MDL3/0-12F ORANGE 3/0 AWG 95 1/2 0.91 1.50 0.13 2.35 0.51 0.63
27 MDL4/0-38F PURPLE 4/0 AWG 120 3/8 1.02 1.62 0.14 2.48 0.55 0.69
28 MDL4/0-12F PURPLE 4/0 AWG 120 1/2 1.02 1.62 0.14 2.48 0.55 0.69
29 MDL250-12F YELLOW 250KCM 135 1/2 1.11 1.62 0.14 2.54 0.625 0.77
30 MDL250-78F YELLOW 250KCM 135 7/8 1.25 1.62 0.12 2.58 0.625 0.77
