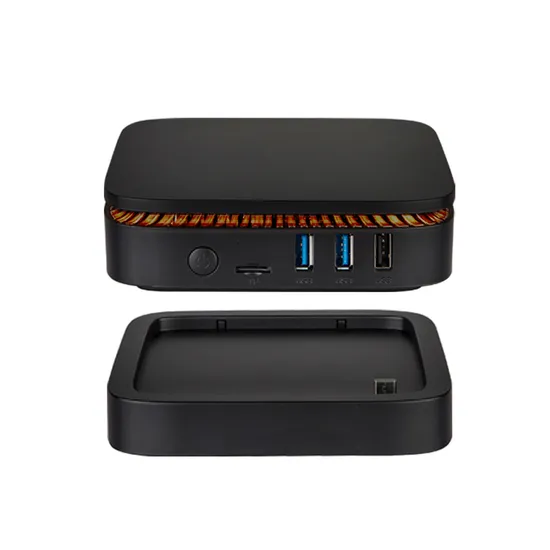

| Product Appearance |
| Type | Spec. | Standard Configuration | Optional |
| Product | Product Type | MINI PC, Ad Terminal Box | |
| Dimension | 128mm*128mm*51.5mm | |
| Case Material | Plastic | |
| Weight | Net Weight 386g,Gross Weight 757g | |
| System Hardware Configuration |
| Type | Spec. | Description | Optional |
| CPU | Model | J3455 J4205 | |
| Speed | 1.5GHz ( J3455) 1.5GHz ( J4205) | |
| Max. Turbo Speed | 2.3GHz ( J3455) 2.6 GHz ( J4205) | |
| Power Consumption | 10W | |
| Memory | Model | LPDDR3/LPDDR4 | |
| Capacity | 2x LPDDR3/LPDDR4 Max 12GB on Board | |
| Storage | EMMC | eMMC Max 128GB | |
| SSD | Optional,mSATA Or SSD,Max 512GB | |
| 2.5'' SSD | Optional,2.5 SATA Port,Max 2TB | |
| TF Card | Standard TF Slot,Max to 128GB | |
| RTC | BIOS | Real-time Clock, Time Boot | |
| Auto Power On | BIOS | Support auto power on after electrified | |
| Diskless Network | BIOS | Support uefi/Legacy Diskless Switch On | |
| TPM | CPU integratesTPM | Support TPM 2.0 | |
| Two screen output | Video Output | Support HDMI1+HDMI2 two screens at the same time under the system | |
| LED | State | Green light- Swith on
Red light- Switch off | |
| Internet Connection |
| Type | Spec. | Description | Optional |
| WIFI | Model | intel 7265/ 3165/ RTL8821CE On Board | |
| Protocol | IEEE 802.11 a, b/g, n, ac | |
| Bluetooth | Model | intel 7265/ 3165/ RTL8821CE On Board | |
| Protocol | Support Bluetooth 4.2 | |
| 3G | Built-in | No | |
| 4G | Built-in | No | |
| Ethernet | LAN1 | 10M/100M/1000M Self-adaption | |
| I/O |
| Type | Spec. | Description | Optional |
| USB | USB2.0 | USB2.0 Type-A*2 | |
| USB | USB3.0 | USB3.0 Type-A*2 | |
| TF | Expansion Memory | TF*1 | |
| HDMI | AV Output | HDMI 1.4b Type A x2 | |
| VGA | Video Output | No | |
| RJ45 | Gigabyte Ethernet | RJ45 x1 | |
| Uart | Data Transmission | No | |
| POWER | Power Button | x1 | |
| DC IN | Power Supply Input | 5.5/2.1mm DC Jack x1 | |
| Audio-in/out | Audio-in/out | 3.5mm Phone Jack x1 (Two-in-one interface) | |
| Antenna1 | FPC Antenna | WiFi 2.4+BT x1 | |
| Antenna2 | FPC Antenna | WIFI 5.0 | |
| SIM | Micro SIM | No Supporting | |
| Software Configuration |
| Type | Spec. | Description | Optional |
| OS | Version | Win10 Home/Win10 pro/Win10 IOT/ Ubuntu | |
| Environment |
| Type | Spec. | Description | Optional |
| Environment | Working Temperature | 0~40ºC | |
| Memory Temperature | -20~60ºC | |
| Humidity | 90% @ 40 °C (No Condensation) | |
| Accessory |
| Type | Spec. | Description | Optional |
| Power Supply | Vesa | Input 100~240V 50/60Hz Output12V/2.5A DC 5.5*2.1mm | |
| IR Remote Control | No Supporting | |
