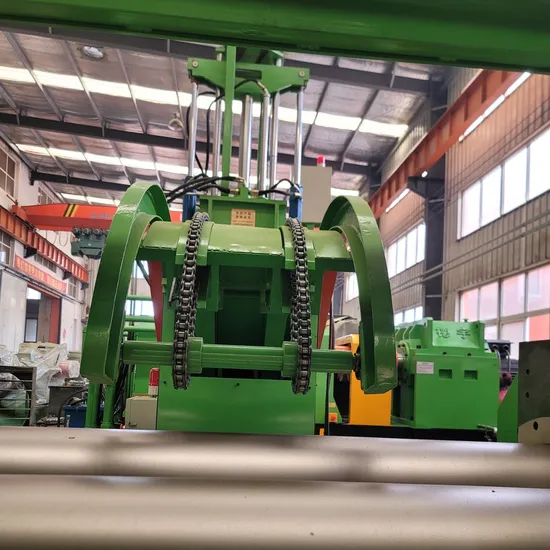

Dy-50L New Type Banbury Mixer for Rubber/Plastic

Product Description

Deyu patent product new type banbury mixer
Features at:
1) this machine has an integral structure, with a compact structure and good leak proofness, comparing with the traditional drop-type
banbury mixer, it has the features of easy installation, small space occupied, smaller pollution, most suitable for the condition of limited
factory building space, and it can give play to the best efficiency, convenient to provide the possibility of automatic rubber mixing.
it is the ideal new type rubber mixing equipment for the medium size rubber products factory.
2) This machine raises the production efficiency greatly, enhances the rubber mixing quality and reduces the unit energy consumption
effectively, its rubber mixing quality and efficiency is same as the traditional drop-type banbury mixer, but the energy required is 2/3 of
the traditional banbury mixer.
3) All the rotors, mixing chamber, discharge door, the top ram etc. can be cooled through water circulation with large cooling area,
meanwhile this machine is equipped with the water temperature control system ,which can effectively ensure the mixing quality
of various rubber materials.
4) The surface of the rotors adopts hydraulic sealing, the sealing specific pressure is adjustable, reliable sealing.
5)The top ram adopts hydraulic drive, to realize constant pressure control of rubber marterials, the bottom ram adopts drop-type
for discharging with hydraulic drive, stable runnng, short opening and closing time, being driven by oil cylinder, tight locking force
is strong, good self-locking and sealing properly.
6) This machine adopts intelligent control system equipped with inverter, its control system adopts touch screen and PLC, while
the touch screen can transmit and display the running condition of the machine effectively, also it can be set different pressure
and rotating speed according to different kinds of material and then all the settings can be on file by serial number, and the relevant
procedure will be callout by inputting the relevant serial number during late productio procedure to run the machine.
7) This machine can select the best rotating speed and pressure according to the hardness and temperature of materials, combining
the electric current, to get the best rubber mixing effects, with the features of going green and environmental protection and intelligentize.
8) This machine can choose to assemble front and rear auxiliary equipments to work continiously according to user's requirements,
to realize automatic rubber mixing.
Detailed specification:

	DY-50L	DY-60L	DY-80L	DY-90E	DY-110L	DY-160L
total volume of mixing chamber	60L	90	120	90	165	240
working volume of mixing chamber	50L	60	80	60	110	160
driving motor power	90 kw	132	185	400	280	400
hydraulic motor power	5.5 kw	7.5	7.5	11	11	11
front rotational speed of the rotor	40(adjustable)	40	40	40	40	40
speed ratio of rotors	1:1.2	1:1.2	1:1.2	1:1.2	1:1.2	1:1.2
consumption of cooling water	20M3/hour	25	25	35	35	50

Pressure of heating steam(rubber mixing)	0.3-0.4Mpa	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Pressure of heating steam(plastic mixing)	0.5-0.8Mpa	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Dimension (mm)	4500 2450 3890	4600 2500 4090	4700 2670 4240	5470 2760 4720	5340 2790 4580	5900 3300 4900
Weight	10 ton	13.5	16.5	22	22.5	39
Ram form	hydraulic ram	hydraulic ram	hydraulic ram	hydraulic ram	hydraulic ram	hydraulic ram

---
