High-Precision 6-Axis CNC Drilling and Milling Machine for Deep Hole Metal Work

Product Description

Drilling, the cornerstone of machining operations, is an essential and highly versatile process across many fields. Traditional drilling equipment such as bench drills, milling machines, and radial drills have long tethered workers to repetitive tasks, compromising both quality and safety. Factors like environmental safety, efficiency, and processing limitations have historically challenged manufacturers. However, with the advent of the CNC era, the High-Speed 6-Axis CNC Drilling Machine for Deep Hole Metal Work has revolutionized this landscape. This cutting-edge innovation liberates the operator from manual tasks while overcoming the bottlenecks of deep hole drilling. It achieves the same processing quality as conventional machines in drilling, enlarging, and expanding, all while facilitating automatic chip removal, CNC positioning, and seamless automated processing.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

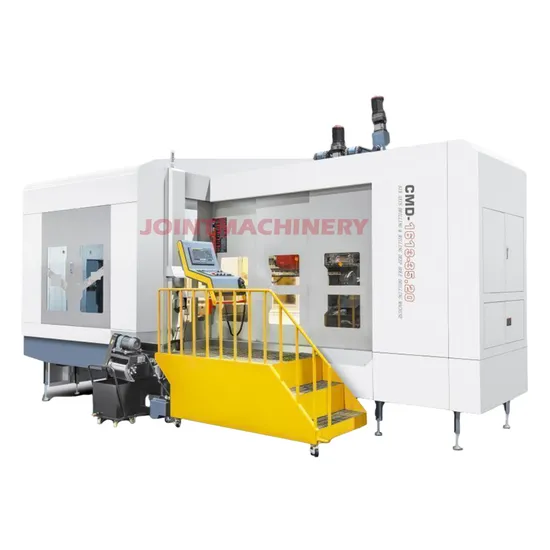

The CMD series Six-Axis Drilling and Milling Composite Machine Tool stands as a testament to multifunctionality, adept at deep hole processing and precision milling. Its hallmark is the rotating workbench coupled with a dynamic A-axis, enabling meticulous machining of complex parts with inclined and double-inclined holes and surfaces. This exceptional capability finds application across a spectrum of industries.
Industries such as automotive mold manufacturing, engine cylinder blocks, shipbuilding, aerospace, petroleum hydraulics, new energy power, nuclear power, and chemical engineering, notably benefit from this technology. Precision components such as inclined top rods on molds, double-inclined water paths in hot forming molds, hot runner plates, engine cylinders, rolling rollers, rotary tables, and flywheels highlight its versatile application.
1.Complete control and servo system provided by FANUC of Japan ensures superior operational precision and reliability.
2. Dual closed-loop design for A and B axes meets stringent requirements for precise composite angles, enhancing accuracy.
3. Features deep hole drilling and milling capabilities, with an optional single pipe drilling function to expand versatility.
4. The broad A-axis swing angle allows for an extensive processing range, accommodating diverse machining needs.
5. The fan-shaped disc design of the hard rail ensures stable and reliable A-axis swinging, promoting consistent performance.
6. The anti-deviation load rotating workbench supports secure and precise operations, boosting efficiency.
7. Incorporates a heavy pre-pressed roller precision wire rail and a large-diameter grinding-grade screw rod for enhanced durability and accuracy.
8. Dual cycle precision filtration system alongside a high-pressure cooling chip removal system ensures optimal machine operation and maintenance.
9. The newly designed fully enclosed cover not only enhances aesthetics but also exudes a strong sense of technological sophistication.
10. The optimized body design provides remarkable rigidity, high stability, and exceptional seismic resistance, ensuring long-lasting performance.
High-Precision 6-Axis CNC Drilling and Milling Machine for Deep Hole Metal Work

Model	Unit	CMD-2516-35.20
Machining Capacity
Drilling diameter of gun drill	mm	3-50
Drilling diameter of single pipe drill	mm	18-65/optional
Max drilling depth of gun drill (W)	mm	1600
Machining Stroke
Left and right of workbench (X)	mm	2500
Sliding table stroke (Y)	mm	1650
Column stroke (Z)	mm	1000
Max drilling depth of gun drill (W)	mm	1600
Swing axis rotation angle (A)	°	Upward 20°, and down to 35°
CNC rotary workbench (B)	°	360
CNC Indexing Table
Max loading capacity	kg	20000
Size (L*W)	mm	2000*1800
Spindle
Spindle taper capacity		BT50
Max spindle speed	rpm/min	4500
Power
Spindle motor	kw	15/18.5
X-axis feed servo motor	N.m	36
Y-axis feed servo motor	N.m	36
Z-axis feed servo motor	N.m	36
W-axis feed servo motor	N.m	36
A-axis feed servo motor	N.m	36
B-axis feed servo motor	N.m	36
Total power	kw	65
Cooling System (Gun Drill)
Coolant pressure range	mpa	2-15
Coolant flow range	L/min	6-85
Size & Weight
Machine size (L*W*H)	mm	9350*6500*5600
Machine weight (About)	kg	30000
System
Control system		Standard:FANUC / Optional:SYNTEC
Milling Ability
Milling range	mm	1600+1000

Shenzhen Joint Machinery Co., Ltd. is an esteemed manufacturer and exporter specializing in CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, milling machines, grinding machines, and more. Our commitment to delivering high-quality machines and superior service is unwavering. We emphasize strict quality control and continual improvement to meet the industry's highest standards. By integrating core technologies from Taiwan and Germany with cutting-edge production equipment and processes, we ensure our products' quality and reliability are unparalleled. Renowned for precision, stability, and dependability, our machines adeptly address complex and high-demand machining tasks. Our reach extends globally, with products exported worldwide, garnering extensive recognition and popularity. With a vast market presence encompassing Asia, Europe, South America, North America, and beyond, we have forged enduring partnerships with clients across diverse regions, driving mutual success and value.

---
