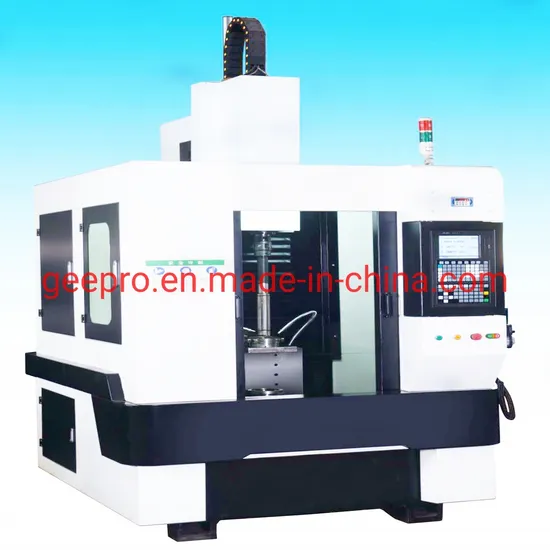

PLC Vertical Honing Machine for Auto Cylinders Dia: 12-300mm Depth: 500mm

US$43,500.00-59,800.00 1 Set (MOQ)

Basic Info.

Model NO.
GEEPRO
Abrasives
Whetstone
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Inner Surface
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Delivery Time
30days
Transport Package
Standard
Trademark
GEEPRO
Origin
China
HS Code
8460401000
Production Capacity
100-200PCS/Year

Product Description


1 Machining Hole Diameter Ø12-Ø400mm
2 Allowable load of table 200kg
3 Maximum stroke Depth 600mm
4 Spindle motor power 1.5KW
5 Spindle reducer ratio 3:01
6 Spindle Speed range 100-1000rpm(CVT)
7 Return Oil Pump flow 100L/min
8 Stroke Motor 2.2KW
9 Stroke Control Type "Servo Motor+Ball Screw"
10 Stroke Speed 0-40m/min(CVT)
11 Honing tool Qty 1 Axis
12 Single Working Station 1(Single Honing tool)
13 Feeding Torque ≥20NM
14 Honing Accuracy ≤0.1mm
15 Feeding Type Constant feed
16 Machine Weight About 2.5 Tons
17 Machine Size L×W×H 1500×1500×2700mm
18 Noise standard Less 80 dB Normally

PLC Control Vertical Honing Machine for auto Cylinders Dia:12-300mm Depth:500mm
