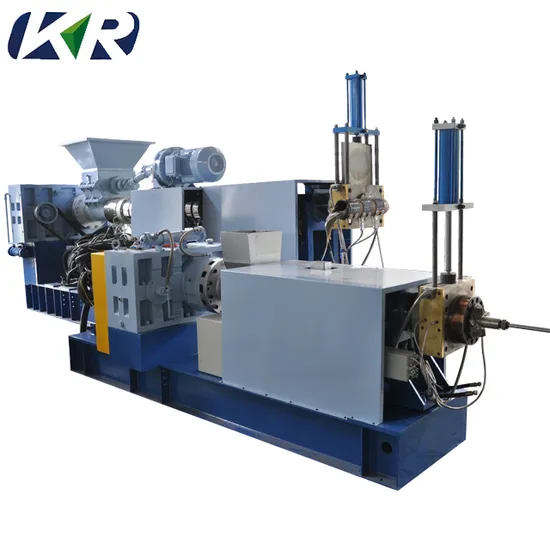

Two Stage Single Screw Waste Plastic Recycling Plant

Product Description

Waste plastic granulator mainly for PP, PE plastic film (PP/PE film, PP/PE plastic bags, PE plastic film mulching films shed, PP woven bag bag tons of cement bags, PP nonwoven) crushed to granulation , make plastic pellet full, even and without porosity, suitable for all kinds of waste plastic regeneration
granulation recycling.
For waste pp/pe plastic film, plastic bottle and others, we strongly suggest you our HMS series two stage single
screw extruder.
Technical Data:

Mode	Diameter (mm)	L/D	Motor power (kw)	Screen Changer	Capacity (kg/h)
SJ-100	100	20-32	30-70	Hydraulic	120-200
SJ-120	120	20-32	37-45	Hydraulic	200-300
SJ-150	150	20-32	55-75	Hydraulic	250-350
SJ-180	180	20-32	75-90	Hydraulic	300-450
SJ-200	200	20-32	110-160	Hydraulic	500-800

Raw material:
If your material are like these, and you do not want to spend too much on the recycle machine. our HMS single screw two stage extrder is your best choice!
Application
The new granules from our machine can be used in manufacture machine parts, water pipes, bags, buckets, toys and other living utensils.
Our advantages:
non-stop screen changer die head: better for filter impurities. It saves you huge cost on washing the waste plastics.
Auxiliary machines you may need:
The line with belt conveyer ,crusher ,extruder, auxiliary equipment. The line with characteristics of high output,low energy dissipation,labor-force saving,and high quality pellets,is an ideal equipment for film recycling and granulating line.
Work Line of the recycling granulating Machine :
The first step: washing and crushing line
The second step: Granules pelletizing line
Features of water cooing strand pelletizing system
Water cooling strand pelletizing system could be applied to most polymer materials processing and application, the entire system is simple and practical, more convenient operation and maintenance. Main components typically include: extrusion template, cooling water tank, drying machine, cooling granulator, vibrating screen and follow-up silo packing system.

---
