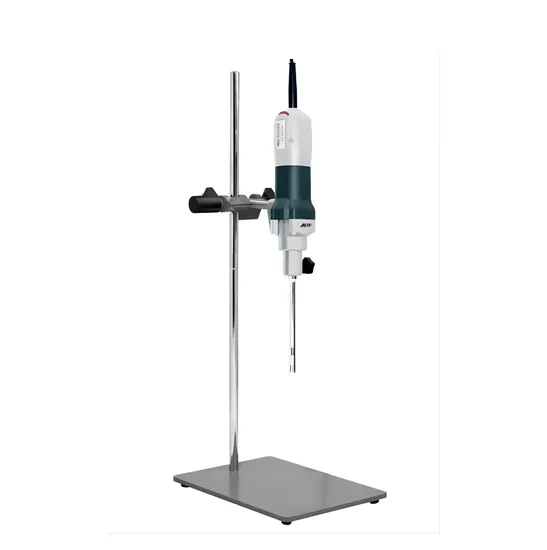

Pharmaceutical Production Lab Homogenizer Emulsifying

Product Description

This model AD18 can be optional running monitor, display speed, convenient data collection experiment.
Germany original ultra-high speed drive motor, the whole machine module structure, easy to operate, can choose a variety of specifications of scattered work head, to meet a variety of high requirements of the experiment, the work head is removable, convenient for replacement, cleaning, sterilization and other work.
No-load speed range: 13000-34000rpm
Working head material: 316L stainless steel
Detailed Photos
Parameter of working shaft:

Working head	12G	18G	24G	30G	36G
Mixing capacity (H2O, ml)	30~800	50~1500	80~5000	100~8000	150~13000
Max viscosity(mPa.s)	5000	5000	5000	6000	7000
Max. rotation speed(m/s)	12	15	18	22	26
Min./max.immersion depth(mm)	35/150	45/160	50/165	60/170	65/175
Size of stator(mm)	Ø12	Ø18	Ø24	Ø30	Ø36
Legth(mm)	215	242	245	255	258
Max temperature(ºC)	120	120	120	120	120
Working head material	SS316L	SS316L	SS316L	SS316L	SS316L
