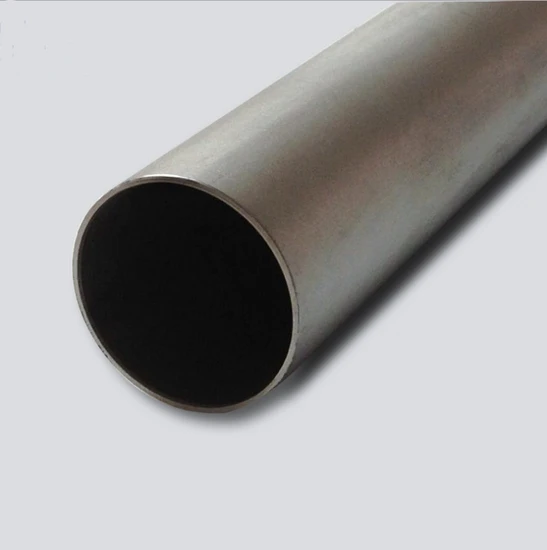

| Product Name | High Quality Gr2 Titanium Tube Pipe |
| Standard | ASTM B338/ASME SB338, ASTM B337/ASME SB337, ASTM B861/ASME SB861, ASTM B862/ASME SB862,AMS4911,AMS4928 |
| Material | Gr1, Gr2, Gr4, Gr7, Gr9, Gr11, Gr12, etc |
| Length | ≤14000mm |
| Size(mm) | Diameter 3-508 |
| Section shape | Round/ Square |
| Certification | ISO9001 |
| Surface Treatment | pickling, polished, bright finish etc. |
| Feature | 1.Low Density and High Strength 2.Excellent Corrosion Resistance 3.Good resistance to effect of heat 4.Excellent Bearing to cryogenic property 5.Nonmagnetic and Non-toxic 6.Good thermal properties 7.Low Modulus of Elasticity |
| Advantages | 1. First-class technonlgy and the rigorous work attitude 2. We have the most professional team to solve all kinds of the problems you have during the manufacturing process and provide your pressure vessel drawing for free if you need. 3. Low purchasing cost for repetitive orders in the long-run as our performance/price ratio is higher. 4. Never be backorder. 5. Excellent customer service policies on repair/exchange/refund. |
| Grade | Tensil strength(min) | Yeild strength(min) | Elongation(%) | ||
| ksi | MPa | ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 3 | 65 | 450 | 55 | 380 | 18 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 38 | 130 | 895 | 115 | 794 | 10 |
