Hot Sale 300-500kg/H Home Use Animal Poultry Feed Pelleting Plant Hammer Mill

Product Description

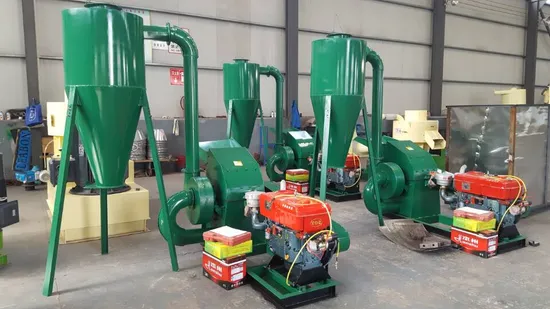

2020 Widely Used New Design CE Rice Husk Hammer Mill
Detailed information of Hammer Mill:
1. An ideal machine for preparing sawdust or small partical animal feed material.
2. Less investment and low energy consumption, high efficient.
3. The advantages of the machine is easy maintenance.
4. The kinds of machine match with collector.
5. Materials: Of < 50 mm (diameter), < 300 mm (length),
The Working Principle of Hammer Crusher:
This hammer mill contains some rotors which are mounted by many hammers. The hammers swing following with the rotor at a high speed. And then the materials fed into a feed hopper are shred by the hammers. At last the materials are expelled out and sieved by the exhaust fan and screen. After milled, the output size can reach diameter 3-5mm, which is suitable for further palletizing or Briquetting
After milled, The raw materials can be crushed into straw particles, whose diameter is 3-5mm. Which is suitable for further palletizing or Briquetting.
The durable hammer mill works with high efficiency and gains more good reputation from European users.
Application of Hammer Crusher:
1. Hammer Mill is suitable for milling raw material like tree branch, cotton stalk, corn stalk, wheat straw etc) with size less than 50mm(diameter).
2. It is suitable for grinding the grains, such as corn, wheat, and straw, etc. Also for wood, paring, etc with different hammer.
Notes:
1. The machine could be derived by the diesel engine, motor, tractor, etc.
2. The kinds of machine could be matched with mounting plate for motor or diesel engine, and collector.
3. Pls tell us the size of your raw material, capacity and motor voltage when ordering.
Main data:

Model	Motor Power (petrol/diesel engine)	Diameter of feeding materials (mm)	Capacity (kg/h)	Dimension (mm)	Weight (kg)
9FQ 360-20	5.5	<=Φ20	300-350	900*500*800	260
9FQ 400-28	7.5	<=Φ20	400-500	1100*550*850	350
9FQ 500-28	11	<=Φ50	600-800	1250*650*1000	450
9FQ 500-40	22	<=Φ50	900-1000	1400*780*1250	750
9FQ 500-50	30/37	<=Φ50	1500-2000	1600*850*1350	900
9FQ 500-60	37/45	<=Φ50	2000-3000	1750*900*1550	1300
