Basic Info.
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Roll Crusher
Pellet Mill Type
Screw Granulator
Expanding Method
Dry Expansion
Applicable Materials Shape
Short strip
Transport Package
Iron Net Box Package
Production Capacity
500000set /Year
Product Description

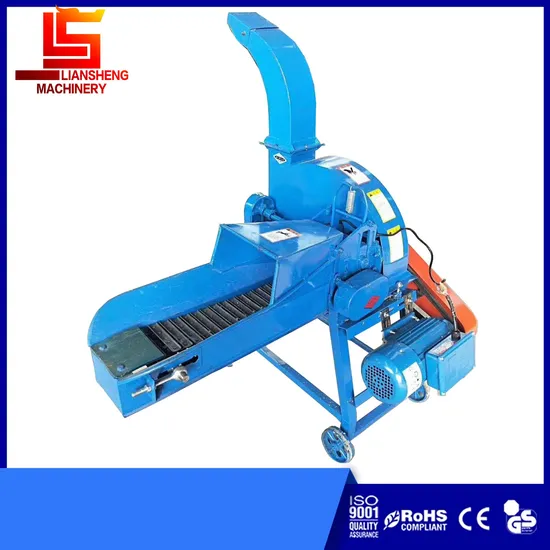

Silage Chopper ,Electric Ensilage Cutter
Forage crop crusher is used for cutting green (dry) of corn stalks, rice straw and other forage crops, straw and agricultural animal husbandry machinery. Fed mainly by the general body, guillotine shear machine,throwing bodies, transmission, running gear, protection devices and rack components.
1. Matching electric motor to work, we can match both 50Hz and 60Hz electric motor, 110V, 220V, single phase, triple phase...
2. High cutting efficiency.
Parameter for chaff cutter:
| Model | Power (kw) | Weight(kg) | Dimension(mm) | Output(t/h) |
| YWFZ-0.4 | 2.2KW | 60 | 550*450*600 | 0.4_1.0 |
| YWFZ-1.0 | 3KW/4HP | 80 | 650*500*600 | 0.8-1.5 |
| YWFZ-3.0 | 3 Phase 5.5KW | 160 | 1230*1150*1695 | 1-3 |
| YWFZ-1.5 | 3KW/4HP | 115 | 820*460*1150 | 1-2 |
| YWFZ-2.0 | 3KW/4HP | 125 | 920*500*1160 | 1.5-2.5 |
| YWFZ-5.0 | 3 Phase 5.5KW | 350 | 2690*1210*2390 | 4.5-5.5 |
| YWFZ-8.0 | 3 Phase 7.5kw | 480 | 3110*1500*2860 | 6-8 |
| YWFZ-10.0 | 3 Phase 15kw | 1000 | 3510*1800*4210 | 8-10 |
| YWFZ-12.0 | 3 Phase 18.5kw | 1285 | 3810*1900*4230 | 12-18 |
| YWFZ-15.0 | 3 Phase 22kw | 1500 | 4100*1950*4350 | 15-20 |
| YWFZ-20.0 | 3 Phase 30kw | 2000 | 4350*2050*4550 | 20-30 |
| YWFZ-30.0 | 3 Phase 45kw | 3000 | 4850*2350*4550 | 25-38 |
Web:lianshengmachinery.en.made-in-china.com
Yucheng Liansheng Machinery Co.,Ltd.
Yucheng City,Shandong Province, China
>>
