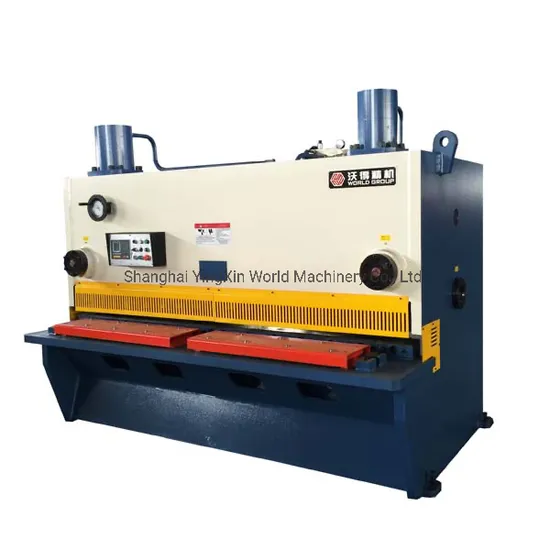

Guillotine Type Hydraulic Metal Sheet Cutting Shearing Machine

Product Description

guillotine type hydraulic metal sheet cutting shearing machine
Features:
1)Entirely steel welded frame, treated to release stress by tempering.
2)Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
3)Adopts rolling guideway to raise shear precision.
4)The stroke of knife beam can be adjusted.
5)With counter.
6)Shearing angle can be adjusted.
7)With protection fence.
Our products range:
- J23 and JH23 inclinable eccentric press, capacity from 6.3ton to 125ton.
- JH21 c frame single crank press, capacity from 25ton to 400ton.
- JH31 semi-straight side single crank press, capacity from 110ton to 400ton.
- JW31 H frame single crank press, capacity from 110ton to 400ton.
- JH25 c frame double crank press, capacity from 110ton to 315ton.
- JW36 H frame double crank press, capacity from 110ton to 500ton.
- JX36 close type big table press with double crank, capacity from 400ton to 1000ton.
- JS36 close type gear press, capacity from 300ton to 1250ton.
- JS31 close type gear press, capacity from 160ton to 1000ton.
- NCF roller feeder
- 3 in 1 straightener feeder with decoiler
- hydraulic shearing machine
- hydraulic press brake and cnc press brake
- hydraulic press machine
Specifications

Items	unit	QC11Y-6x2500	QC11Y-6x3200	QC11Y-6x4000
Max. cutting thickness	mm	6	6	6
Max. cutting width	mm	2500	3200	4000
Tensile strength of plate to be cut	N/mm2	450	450	450
Cutting angle	deg	0.5-1.5	0.5-1.5	0.5-1.5
Travel distance of back gauge	mm	20-550	20-550	20-600
Throat depth	mm	150	150	150
Stroke speeds	spm	16-26	12-22	10-20
Main motor	kW	7.5	7.5	7.5
Length	mm	3000	3700	4800
Width	mm	1500	1650	1650
Height	mm	2000	2050	2250

Items	unit	QC11Y-8x2500	QC11Y-8x3200	QC11Y-8x4000
Max. cutting thickness	mm	8	8	8
Max. cutting width	mm	2500	3200	4000
Tensile strength of plate to be cut	N/mm2	450	450	450
Cutting angle	deg	0.5-2	0.5-2	0.5-2
Travel distance of back gauge	mm	20-600	20-600	20-600
Throat depth	mm	150	150	150
Stroke speeds	spm	14-25	12-20	10-20
Main motor	kW	11	11	11
Length	mm	3040	3860	4800
Width	mm	1700	1700	1800
Height	mm	2150	2350	2480

Items	unit	QC11Y-10x2500	QC11Y-10x3200	QC11Y-10x4000
Max. cutting thickness	mm	10	10	10
Max. cutting width	mm	2500	3200	4000
Tensile strength of plate to be cut	N/mm2	450	450	450
Cutting angle	deg	0.5-1.5	0.5-1.5	0.5-1.5
Travel distance of back gauge	mm	20-600	20-600	20-600
Throat depth	mm	150	150	150
Stroke speeds	spm	12-20	10-20	10-18
Main motor	kW	11	15	15
Length	mm	3040	3860	4800
Width	mm	1700	1700	1800
Height	mm	2150	2350	2480

---
