API Standard High Precision Drilling Pipe for Oil Drilling Rig

Product Description

Product Description
Oil drill pipes are essential components used in drilling operations within the oil and gas industry. These pipes are specially designed to connect the drilling rig surface equipment with the drilling bit and bottom hole assembly. Made from high-grade steel, drill pipes must withstand extreme stresses, high pressure, and rotational forces during drilling operations.

Product Features
High Tensile Strength:
Drill pipes are engineered to handle the enormous tension, compression, bending, and torsional stress encountered during drilling in deep wells and challenging geological conditions. Durable and Corrosion-Resistant:
Typically coated with anti-corrosive materials, these pipes are highly resistant to corrosion, making them suitable for use in harsh environments, including offshore drilling sites. Threaded Connection Ends:
Each drill pipe features a threaded connection on each end, known as a "tool joint," which allows secure joining with other sections of the drill string. This threaded connection ensures stability and prevents detachment under high stress. Flexible Lengths and Diameters:
Available in various lengths and diameters, drill pipes can be customized to suit different drilling depths and well specifications. Hollow Design for Fluid Flow:
The pipes are hollow to allow the flow of drilling fluids (mud), which cools and lubricates the drill bit, removes cuttings from the borehole, and balances downhole pressure. Product Parameters

Size		Weight	Grade	Wall thickness		Upset types
Inch	mm			Inch	mm
2 3/8	60.3	6.65	E.X.G.S	0.28	7.11	EU
2 7/8	73	10.4	E.X.G.S	0.362	9.19	IU,EU
3 1/2	88.9	9.5	E	0.254	6.45	IU,EU
3 1/2	88.9	13.3	E.X.G.S	0.368	9.35	IU,EU
3 1/2	88.9	15.5	E	0.449	11.4	IU,EU
3 1/2	88.9	15.5	X.G.S	0.449	11.4	EU,IEU
4	101.6	14	E.X.G.S	0.33	8.38	IU,EU
4 1/2	114.3	13.75	E	0.271	6.88	IU,EU
4 1/2	114.3	16	E.X.G.S	0.337	8.56	EU,IEU
4 1/2	114.3	20	E.X.G.S	0.43	10.92	EU,IEU
5	127	16.25	X.G.S	0.296	7.52	EU
5	127	19.5	E	0.362	9.19	IEU
5	127	19.5	X.G.S	0.362	9.19	EU,IEU
5	127	25.6	E	0.5	12.7	IEU
5	127	25.6	X,G,S	0.5	12.7	EU,IEU

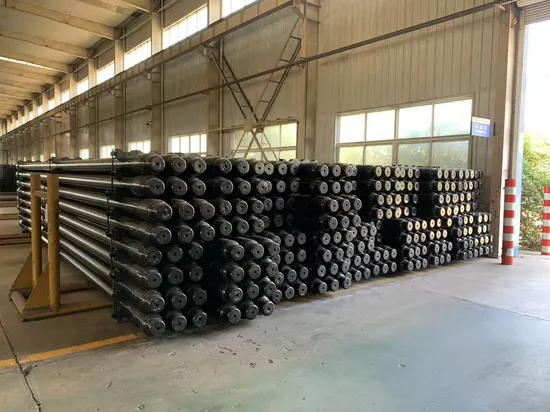

Detailed Photos

---
