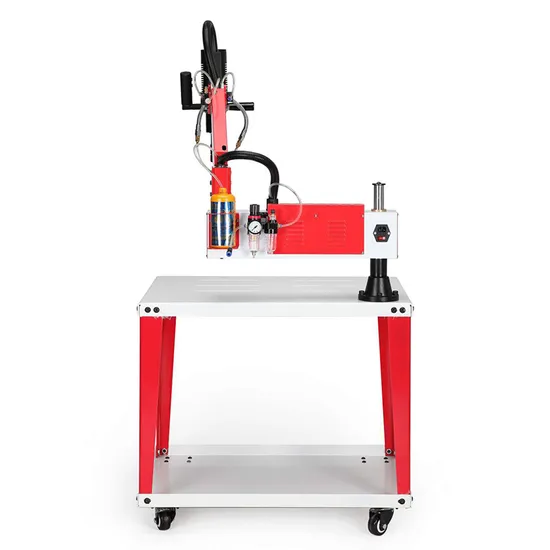

M6-M24 Automatic Oiling Electric Self Tapping Screw Machine

Product Description

Universal Electric Tapping Machine
Strong torque output, no need of experience and strength to be proficient in operation Aluminum alloy Swing arm bracket LCD Touch screen control Unit Quickly change tapping chuck
Specification

Tapping capacity	M2-M10
Spindle speed	0-500r/min
Working radius	1200mm
Power type	220V(AC)
Power rating	600W
Operation interface	HD touch screen
Key Selling Points	Automatic oiling and deslagging, cooling
Weight	26kg

Specification of other model

Model	Spindle speed	Work Radius	Power type	Power rating
M3-M16	0-250r/min	1200mm	220V, AC	600W
M6-M24	0-200r/min	1400mm	220V, AC	1000W
M8-M30	0-150r/min	1400mm	220V, AC	1000W
M10-M36	0-130r/min	1400mm	220V, AC	1000W

Product details
Standard Accessories: Tapping Arm(one set), Servo Motor And Reducer(one set),Tap Holder M3-M16(one set)
Optional Accessories
Application
Packing & Delivery
Delivery Time:
20-40 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Why Choose Us
RSM special design and precision machining of oil cylinder to ensure long-term stability even in poor working environment
Hydraulic system adopt Taiwan Winner valve group ensure high reliability work 24 hours a day, according to the high
pressure value stable repeat work requires the freedom to choose the dwell time ensure insertion 100% qualified
Can be equipped with automatic feeding system, clinching joint system
