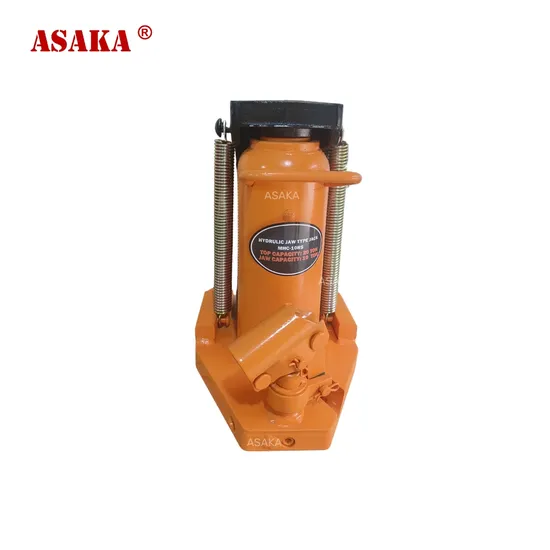

Asaka Factory Price Lifting Tool 5t Lifting Hydraulic Track Toe Claw Jack

Product Description

Product Description
What is toe jack?
Toe Jack is a special type of jack that usually has a smaller head or toe to fit into a narrow or specific shaped work- space and is used for jacking or supporting heavy objects.

Toe jack is usually used in automobile manufacturing, casting machinery, transportation and other mechanical products to carry out equipment lifting equipment support.
Product features
1. Complies with ANSI/ASME B30.1, CE/GS standards.
2. Designed for lifting loads with very low minimum clearance (foot) or high clearance (head).
3. Can be used in confined spaces.
4. Built in safety valve for overload protection.
5. Features spring assisted return and over travel protection on 5 and 10 ton models.
6. Forged base and cylinder to assure strength.
Product Parameters

Model		MHC-2.5RS	MHC-5RS	MHC-10RS	MHC-15RS	MHC-25RS	MHC50RS
Size(Length×Width×Height) mm		210×140×232	260×200×283	295×220×322	305×255×350	340×285×350	570×440×430
Claw(Lowest position) mm		20	20	25	30	50	50
Claw width mm		65	100	115	130	130	220
Claw length mm		45	50	55	60	65	80
Lifting Height mm		115	148	158	158	150	150
Rated Load T	Top	5	10	20	30	50	100
	Claw	2.5	5	10	15	25	50
Weight kg		11	24	36	55	75	189

Customized service support
1.We can custom the color what you want. Only need you to provide the color number or we can supply the popular color for you to choose.

2.Package, manuals, certificates can be customized according to your requirement, meet your Individual requirements.

3.Red/ Blue/ Yellow is our regular color, there are in stock. We can delivery fast when your quantities and models are same as ours. You can consult our sales team. Certifications
ASAKA related certificate of toe jack
Toe jack sellers must conduct safety tests and obtain relevant safety certificates to ensure the safe use of toe jack. ASAKA toe jack in terms of product quality, we will strictly check each product to ensure that it absolutely meets safety standards. Packaging & Shipping
Common uses of toe jack include:
Before use, the claw jack is placed smoothly, and before lifting, the degree of softness and hardness of the ground should be considered to prevent the skew and danger of heavy objects during the lifting process.

Top bearing tonnage: 5T 10T 20T 30T 50T claw jack shaft, cast by high-density alloy steel, strong, durable, wear-resistant; Claw jack is not easy to leak oil, long service life. Claw jacks can be used in narrow Spaces and are widely used. Claw jack has a wide range of applications, flexible use and other characteristics, can be widely used in a variety of mechanical assembly and maintenance, warehousing logistics and other large equipment and other occasions. Company & Factory
ZHI XING MACHINERY (HANGZHOU) CO., LTD.
Which is a professional enterprise integrating R&D, design, manufacturing and export. It produces and exports various small lifting tools such as jacks, lifting slings, manual and electric hoists. The company is located in the beautiful Hangzhou, China, close to the ports of NINGBO and SHANGHAI, with convenient transportation, our products with stable quality, complete certificates and qualifications, our company with more than 20 years of industry experience and rich export experience in more than 50 countries around the world. Customers and friends from all over the world are welcome to consult and cooperate.
Why Choose Us?

Why choose ASAKA?
1.Annual production of jacks over one million, exported to more than 50 countries.

2.The factory area is 18,000 square meters.

3.The factory has passed ISO 9001 and BSCI.

4.The product complies with GS/ ANSI/ ASME standards.

5.We have own R&D team.

6.Complete quality inspection system.
