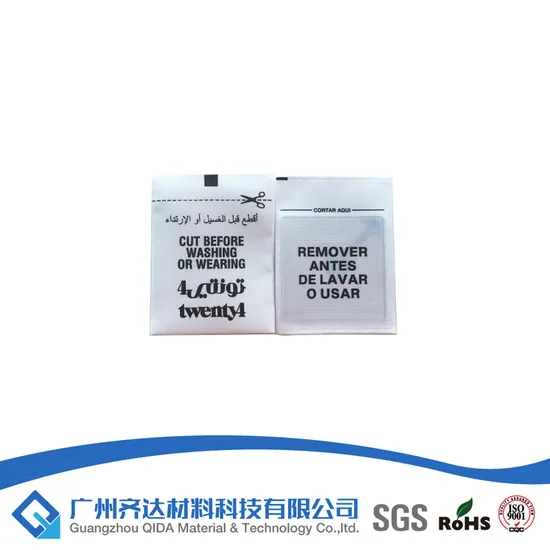

Label Companies 8.2MHz EAS RF Label Supplier

Product Description

Label Companies 8.2MHz EAS RF Label Supplier China Manufacturer.
Detailed Product Description
Label Dimension Specification

Diameter	50*58cm
Thickness (including Liner)	27μm
Thickness(excluding liner)	21μm
Label Spacing	2mm (0.066')

Material Specifications

Substrate	80g/m2 glassing paper
Surface	80g/m2 thick reinforced paper
Inductor Side	Aluminum
Capacitor Side	Aluminum
Adhesive	Rubber-based, hot melt adhesive

Electrical Specifications

Frequency	8.2MHz±328KHz
Amplitude	Q≥70
Effective Volume	≥2000cm3
Deactivation Strength	0.9A/m-1.5A/m
Operating Distance	1.4m-1.7m
Deactivation Distance	25cm-30cm (0.82'-0.98')

Environmental Specifications

Shelf Life	Two years from date of manufacture when labels are stored between 10ºC-25ºC (50ºF-77ºF) and 35% to 65% RH
Temperature	Maximum storage temperature not to exceed 50ºC (120ºF) for 96 hours at 80% RH
Humidity	Unaffected by 80% humidity up to 96 hours
Application Temperature	Above 0ºC-38ºC (32ºF-100ºF) and 90% RH at the application head Recommended ambient temperature is 15ºC-32ºC (60ºF-90ºF) Recommended ambient humidity is 50%-70%

Roll Specifications

Labels Per Roll	1000 labels	2000 labels
Roll Length	42m (137.8')	84m (275.6')
Diameter Inner Core	7.6cm (3'')	7.6cm (3'')
Roll Outer Diameter	13.4cm (5.3'')	18.5cm (7.3'')
Roll Weight	0.47kg (1.04lb)	0.91kg (2.0lb)
Case Weight	9.8kg (21.6lb)	9.4kg (20.8lb)
Rolls Per Case	20	10
Case Dimension	27cmx27cm x23.5cm (0.89' x0.89'x0.77')	32cmx32cm x23.5cm (1.05' x1.05'x0.77')

Why Choose us?
1. One-stop security solution Supplier, can be help you to save time and costs.
2. Our own manufacturer could strictly control the quality, and make the cost to be the most competitive one.
3. Easy opration, attractive design.
4. Professional technique supports and great service.
5. Fast delivery and safe shipping way.
6. Providing excellent protection for your merchandize.
Shipping Method:
1) Fast delivery: By Express courier, such as DHL, TNT, FedEx, UPS and EMS
2) Cheap way: By air or by sea shipment.
Quality Warranty:
1 - 2 years warranty from the date of delivery, a lifetime technical support.

---
