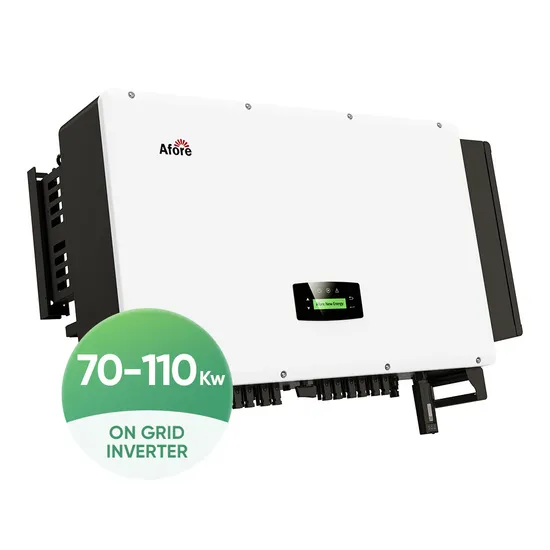

Afore on Grid Tie Single 3 Phase Solar Power Inverter 70kw 80kw 90kw 100kw 110kw PV Solar Inverter

US$2,530.00
2-19 Pieces
US$2,390.00
20-299 Pieces
US$2,100.00
300-1,499 Pieces
US$1,850.00
1,500+ Pieces

Basic Info.

Model NO.
AF 3 Phase 70-110KW-ON
Nature of Source Flow
Active Inverter
Phase
Three
Output Power
70-110kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Afore
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Product Name
Afore Solar Inverter
PV Input Power
105kw-165kw
MPPT Voltage Range
200 - 1000 V
No. of Independent MPPT Inputs
6 /12
Input Connector Type
Mc4
Max Continuous Power
70-110 Kw
Nominal Grid Voltage
260VAC-519VAC (According to Local Standard)
Nominal Grid Frequency
50/60Hz
Display & Communication Interfaces
LCD, LED, RS485, Can, Wi-Fi, GPRS, 4G
Protection Degree
IP65
Transport Package
Carton Box with Pallets
Specification
979 x 610 x 310 mm
Trademark
Afore
Origin
China
HS Code
8504403090
Production Capacity
1000pieces/Week

Product Description

Product Description
Technical Specifications
Module BNT070KTL BNT075KTL BNT080KTL BNT090KTL BNT100KTL BNT110KTL
PV Input Data
Max. DC Power ( W ) 105000 112500 120000 135000 150000 165000
Max. DC Voltage ( V ) 1100
MPPT Voltage Range
( V ) 		200 - 1000
MPPT Full Power Voltage Range ( V ) 500 - 850
Rated Input Voltage ( V ) 620
Start-up Voltage ( V ) 200
Max. Input Current
( A ) 		38 x 6
Max. Short Current
( A ) 		48 x 6
No. of MPP Tracker / No. of PV String 6 /12
Input Connector Type MC4
AC Output Data
Max. Output Power
( VA ) 		77000 82500 88000 99000 110000 110000
Nominal Output Power ( W ) 70000 75000 80000 90000 100000 110000
Max. Output Current
( A ) 		111 120 127 143 158 158
Nominal Output Voltage ( V ) 3P+N+PE /3P+PE 230/400
Grid Voltage Range 260Vac-519Vac (according to local standard)
Nominal Output Frequency ( Hz ) 50/60
Grid Frequency Range 45-55Hz/55-66Hz(according to local standard)
Output Power Factor 1 default (adjustable from 0.8 leading to 0.8 lagging)
Output Current THD <3%
Efficiency
Max. Efficiency 99.00%
Euro Efficiency 98.30% 98.40%
Protection
PV Reverse Polarity Protection YES
PV Insulation Resistance Detection YES
AC Short Circuit Protection YES
AC Over Current Protection YES
AC Over Voltage Protection YES
Anti-Islanding Protection YES
Residual Current Detection YES
Over Temperature Protection YES
Integrated DC switch YES
Surge Protection Integrated (Type II)
Smart IV Curve Scaning YES
Quick Arc Fault Circuit Interruption Optional
General Data
Dimensions (W x H x D, mm) 979 x 610 x 310
Weight ( kg ) 72 76
Protection Degree IP65
Enclosure Material Aluminum
Ambient Temperature Range (°C ) -25 to 60
Humidity Range 0 -100%
Topology Transformerless
Communication Interface RS485 / WiFi / Wire Ethernet / GPRS (optional)
Cooling Concept Intelligent fan cooling
Noise Emission ( db ) <55 <60
Night Power Consumption ( W ) <1
Max. Operation Altitude ( m ) ≤4000
Certifications and Standards
EMC Standard EN/IEC 61000-6-2, EN/IEC 61000-6-3, EN61000-3-2, EN61000-3-3, EN61000-3-11, EN61000-3-12
Safety Standard IEC 60068, UL1741, EN62109
Grid-connection IEEE1547, CSA C22, EN50549, VDE4105, VDE0126, RD1699,
ABNT NBR16149 & 16150, AS4777.2, NB/T32004, G98/G99, IEC61727
