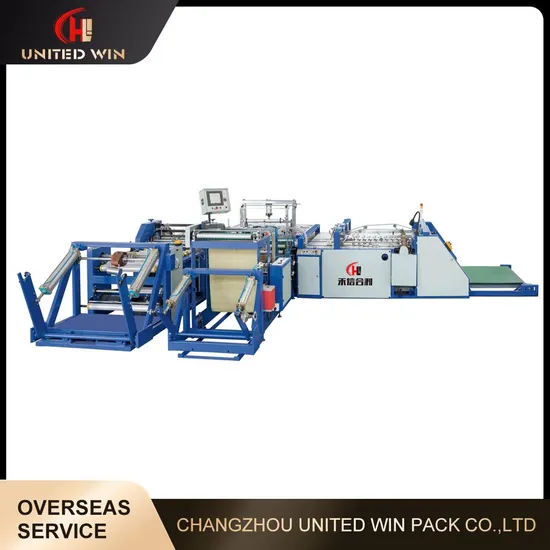

Woven Sack Plastic Bag Automatic Cutting and Sewing Machine Liner Inserting

Product Description

Woven Sack Plastic Bag Automatic Cutting and Sewing Machine Liner Inserting
Features:
1.Auto pneumatic fabric roll loading, static elimination device.
2.EPC for woven bag and liner bag.
3.Printing mark tracking, bag length contrlolled by servo system.
4.Hot cutting, auto mouth open.
5.Cold cutting, Servo system control (Optional)
6.Auto alarm for serving thread break, abnormal bag sending and folding.
7.Liner Bag automatic bottom sealing, cutting and inserting.
8.PLC centralized control, Touch screen display parameter setting and record.
9.High quality imported/ domestic sewing machine.
10.Inverter control speed, Auto bag counting, folding, transportation.

Technical Parameters:

Model	UW-700
Max.Width of cutting bag	700mm
Diameter of unwinding cloth	≤φ1200mm
Length of cutting bag	500-1300mm
Production capacity	15-25pcs/min
Stitch Range	Double thread, chain
Length of stitch	5-14mm
Fold wigth of bag bottom	20-30mm
Max. dia. of unwinding	1200mm
Power	18KW

Application:

Company Information:
FAQ: 1. Are you manufacturer or trading company?
We are a specialized manufacturer.

2. Is your machine automatic or manual ?
Automatic.

3. How do you control the quality?
Professional QC team comply with TQM insure you the quality. Each step is in compliance to the standards. At the same time, we will take photos or shoot video for you.

4. What about the service offered by company?
We have professional engineering team which can design and develop the mold to arrive different customer requirement.We will send technician to your country for installation and training make sure your worker can operate the machine well.We also have the sales team to offer good service from Pre-sale to After-sale.

5. What is the machine warranty?
One Year.

---
