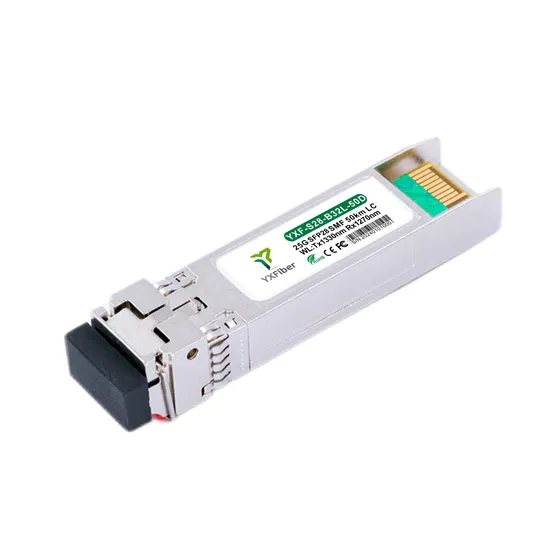

25g SFP Bidi 50km Sm Simplex LC Fiber Optic Transceiver Module SFP28

Product Description

SFP28 25G BIDI 50Km 1270/1310nm SM SF LC DDM Transceiver module

Form Type	SFP28	Max Data Rate	25G
Wavelength	1270/1310nm	Max Cable Distance*	50KM
Connector	LC	Transmitter Type	DFB
Fiber type	single fiber	DDM/DOM	Supported
TX Power	1-6dBM	Receiver Sensitivity	<-20dBm

Features Up to 50KM transmission distance Support Multi Rate 9.8304~25.78125Gbps 1270/1310nm DFB and PIN receiver 25GAUI C2M electrical interface 2-wire interface for integrated Digital Diagnostic monitoring SFP+ MSA package with single LC connectors Hot pluggable Very low EMI and excellent ESD protection +3.3V power supply Power consumption less than 1.2 W Operating case temperature: -40~85°C Application: • 25Gbps Ethernet
•CPRI
Q&A
Q: What kinds of custom choices are offered in YXFiber?
A: As for customized transceivers, YXFiber offers regular custom choices such as compatibility, transmission distance, operating temperature, label pattern, label colors and etc. What's more, YXFiber welcomes any inquiry for customized products and solutions for all need and specifications.
Q: Why should I trust YXFiber compatible transceivers?
A: Besides the price advantage, we have compared to branded transceivers, YXFiber compatible transceivers also maintain the same performance and reliability. To satisfy our customers' needs of high performance, all of our transceivers are tested multiple times in mainstream original brand switches in our test center before shipped out.
Q: Can we use APC connectors on this?
A: Hi, as the default type is UPC, so it's only can be connected with UPC connectors. Thanks
Q: Once I place an order for my transceivers, how long will it take to receive them?
A: Normally you can receive the goods within 7 workdays
Q: Will using compatible optics in my equipment negatively affect my manufacturer's warranty?
A: No. Network equipment manufacturers do not require that you use only name-brand optics. In fact, when a product fault or defect occurs in the network, and the fault or defect is not attributable to the use of third-party optics, they will continue to provide support for the affected product under warranty or covered by their support program.

---
