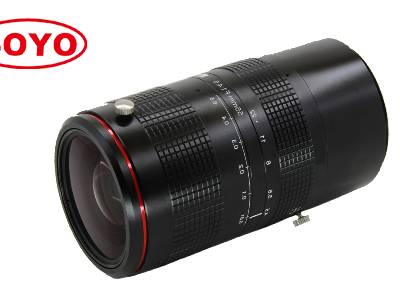

150 Megapixel Lenses 3.5μm E.F.L 55mm Φ67 < 0.01% Low Distortion FA Machine Vision Factory Automation Positioning Measurement China Camera Optical Line Scan Lens

Product Details

Product Description

Product Description
Homepage download:
/products_detail.asp?id=1489&cataid=189&Cataupper=0&list=0
150Megapixel Lenses 3.5μm 55mm focal length <0.01% Low Distortion FA Machine Vision Factory Automation Positioning Measurement China Camera Optical Line Scan Lens
High resolution : 3.5μm 150 Megapixel
Large format: Φ67
Magnification : 0.5x ~ 0.01x
Low distortion : Low distortion 0.01% for measurement and vision
Application : Automation, machine vision, medical, life science, measurement.

Model

SLS5515M72-150M ( Download )

Magnification(x)	0.5x	0.4x	0.3x	0.2x	0.1x	0.01x
W.D	97.55mm	128.3mm	179.1mm	280.6mm	585.9mm	6074mm

Resolution

3.5μm

Distortion

0.01%

Angle of view °

29°

Max format

φ67

E.F.L

55mm

Aperture

F4.5~22

Mount

M72*P0.75

Dimension

Φ79.2*69.3mm
