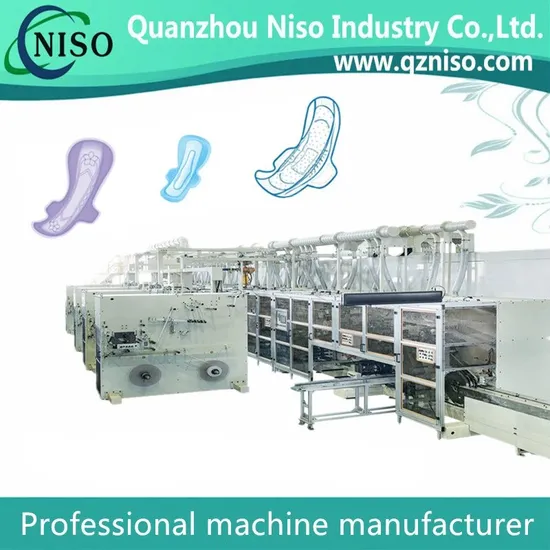

Sanitary Napkin Making Machine for Always Ultra Thin Sanitary Pad

Product Description

Product Description 500pcs/min Sanitary Napkins Machine for U by Kotex Clean Wear Ultra Thin Pads with Wings
Main Function Features of Sanitary Napkins Machine Servo motor driving with PLC control and touch screen; High-speed teeth-like crusher; Web-wheel molding; SAP auto adding with amount control; Servo unwinding, auto-tension control and auto splicing for raw materials; Auto reject for wasted products, auto detect & alarm for material exhausted; Phase adjusting during running without stop; Product auto counting and outputting in line. Main Technical Parameter of Sanitary Napkins Machine

Product size	280mm, 320mm	Machine weight	38T
Designed production speed	800 pcs/min	Stable production speed	600 pcs/min
Machine capacity	≥ 260kw	Weight deviation	±2%
Rate of finished product	≥98%	Efficiency rate	≥88%
Power source	380V50HZ	Installed capacity	≥260KW
Machine color	Customerization	Machine direction	Customerization

The Comparison of Four Kinds of machines
Part 1 Parameter
Model	YC-HY400	YC-HY600-FC	YC-HY600-HSV	YC-HY800-SV
Name	Economic type	Frequency type	Semi servo type	Full servo type
Automaticly	Semi-auto	Full auto	Full auto	Full auto
Product size	2 sizes classic thick & ultra thin wing & straight	2 sizes classic thick & ultra thin wing & straight	2 sizes classic thick & ultra thin wing & straight	2 sizes classic thick & ultra thin wing & straight
Design speed	500pcs/min	800pcs/min	800pcs/min	1000pcs/min
Production speed	300-400pcs/min	500-600pcs/min	500-600pcs/min	700-800pcs/min
Power	150KW	200 KW	200 KW	250KW
Power source	380V, 50HZ, 3 phase 5 wire	380V, 50HZ, 3 phase 6 wire	380V, 50HZ, 3 phase 7 wire	380V, 50HZ, 3 phase 8 wire
Efficiency	>=85%	>=88%	>=88%	>=88%
Rejection rate	<= 3%	<= 2%	<= 2%	<= 2%
Machine weight	45 Ton	60 Ton	60 Ton	60 Ton
Machine size	22m * 3m * 3m	28m * 3m * 3m	28m * 3m * 3m	28m * 3m * 3m
Operating size	25m * 7m * 5m	33m * 7m * 5m	33m * 7m * 5m	33m * 7m * 5m
Air pressure	0.6-0.8MPA	0.6-0.8MPA	0.6-0.8MPA	0.6-0.8MPA
Machine color	Customlized	Customlized	Customlized	Customlized
Machine direction	Customlized	Customlized	Customlized	Customlized
Part 2 Electric part
PLC	No have	Mitsubishi / Simense	Mitsubishi / Simense	Mitsubishi / Simense
Touch screen	×	Mitsubishi / Simense	Mitsubishi / Simense	Mitsubishi / Simense
Unwinding type	×	Initiative	Initiative	Initiative
Materials shaft stand	Machanical shaft stand	Pneumatic shaft stand	Pneumatic shaft stand	Pneumatic shaft stand
Tension control system	×	√	√	√
Unwinding motor	×	Invertor motor	Invertor motor	Servo motor
Web guider	Manual	Digital & Auto	Digital & Auto	Digital & Auto
Driving system	One main motor	Three main motors	Servo motor independently control	Servo motor independently control
Detective	Manual	Auto	Auto	Auto
Materials splicing	Manual	Auto	Auto	Auto
Safety door	Back	Back & Front	Back & Front	Back & Front
Flat belts	China	Switzerland	Switzerland	Switzerland
Timing belts	China	USA	USA	USA
Bearing	China	Japan	Japan	Japan

Sanitary Napkins Machine Details
Company Profile

Our Mission: Helping the aged,woman & children around the world.Providing healthy,safe& hygienic quality raw materials.
Our Vision:To be a highly visible,trusted & integrated service company in the hygiene industry, assisting customers to grow at a rapid pace.
Sense of worth:
Customers first, employees second
Be simple, beacuse trust
Make small but daily progress, Quantity Breeds Quality
Achievement customer, Achievement youself

What can we do for you?
1	Equipment within one year warranty from the date of installation on buyer's workshop, modifications made to the machine as requested by the buyer, the quality guarantee period is constant.
2	Equipment installation, debugging and training buyer's operating personnel.
3	Yichuan shall dispatch 3 engineers to your factory, include mechanical engineers, electric engineers and glue applicator engineers.
4	Responsible for the use of raw materials for commissioning of the equipment at the Supplier's factory.
5	Buyer can send a people to Yichuan factory to learn the machine before delivered.

Frequently Asked Question
Q:Are you a machine manufacture or trading company?
A: We are a machine manufacture of baby diaper machine, adult diaper machine, pull on diaper machine, sanitary napkin machine, panty liner machine,underpad machine, pet pad machine, breast pad machine and Underarm pad machine.

Q: What is the delivery time for a set machine?
A: 120 days as a fastest delivery time. As a manufacture, we need time to make our machine perfect in every taspect.

Q: What is your term of payment?
A:T/T is our first choice, L/C at sight is ok as well.

Q: How long is the warranty period?
A: one year after the testing finished at the buyer's workshop.

Q: Will you send the engineer to install machine and train our workers in our factory
A: of course. We will send engineer to installing and training. But the salary and accommodation of technician will be on the buyer' s side. you can sent your engineers to our
factory for training, we will offer accommodation.
Q: How long can I get the machine?
we will begin to make your machine once we receive your 30% down payment.
around 4 month, we will finish the produce and ask the buyer to check the machine and pay for the rest money.
about 10 days for packing the machine, arrangment of shipping and customs clearance.
some days for the shipping and some days for the customs clearance in the buyers country.
Finally, you can get the machine.

---
