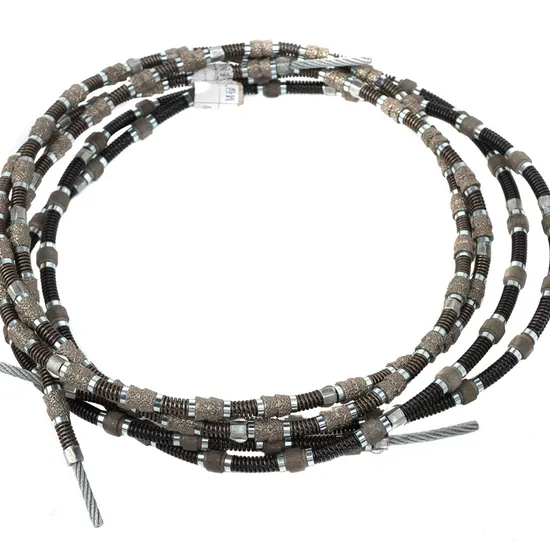

Granite Quarrying Diamond Wire Saw

Product Description

The wire saw is used for cutting quarries, for squaring blocks or special-shaped block processing.
Three essential components for diamond wire saw are as followed:
1. Steel cable with diefferent diameter depending on the application
2. Sintered diamond beads.
3. Fixed method: springs, rubber or plastic. Protects the steel cable because of stone abrasive, and also sbsorbs the energy of the cutting friction of the beads against the stone.

Our advantages:
1. High efficiency, safe, low-noise, less-dust, and enviroment-friendly.
2. Good cutting with small slot.
3. Few breakage raito at working thus sound lifetime.
4. Professional engineers, experienced workers, strict quality control system, top quality material etc. ensure the stable quality.
5. Other specifications are available upon request.

Products	Application	Diameter(mm)	Fixed method
Vacuum brazed wrie saw	For marble, limestone, travertine quarry	11.0	spring
	For marble, limestone, travertine block squaring	11.0	spring
Diamond wire saw for granite, Sintered	For quarry	11.5	rubber
	For squarring	11.0	plastic
	For profiling	8.8	plastic
Diamond wire saw for marble, Sintered	For quarry	11.0	spring
	For squarrying	11.0	plastic
	For profiling	8.8	plastic

Diameter
(mm) Connection Beads/meter Linear Speed(m/s) Application

8.5/8.8	Plastic+spring	37	20-30	Granite Sandstone
11	Plastic	40	20-30	Granite Sandstone
11.5	Plastic	40	20-30	Granite Sandstone
11.5	Plastic+spring	40	20-30	Granite Sandstone
8.5/8.8	Plastic	37	25-35	Marble
11	Spring	28	25-35	Marble

Attention:
1. Regular inspections of diamond wire self rotation and adjust in time.
2. Regular inspections of diamond wire abrasion to avoid cut-in-one-side problem happened, and make the solution in time if occurs.
3. Regular inspections the joint, as well as the beads of two sides, if they are abrase badly, replaces them in time.
4. The steel cable tension of the stationary machines should be controlled within 250-300kg(φ4-5mm).
5. Linear speed is ajusted according to stones hardness.
6. For the new wire, when start to cut, its linear speed should be slower 2-3m/s than the standard mentioned above, it is good for sharpen.

---
