ZICAR automatic pvc mdf panel furniture melamine edge bander banding making machine price for cabinet doors

Product Description

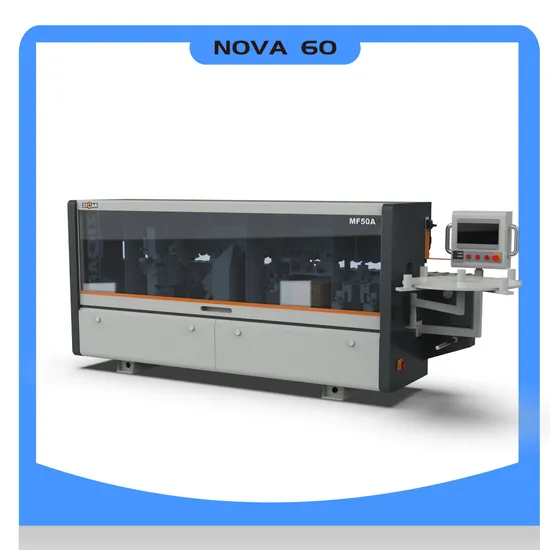

ZICAR automatic edge banding machine
Introduction:Edge banding machine is a kind of woodworking machinery. It belongs to the category of plate machinery. Which is used for edge banding as the name suggests. The traditional manual operation process is completed with highly automated machinery. Including conveying - gluing - end cutting - Fine trimming - scraping -buffing. and many other processes. NOVA 60 series belongs to automatic edge banding machine, with Pre-milling - gluing - end cutting- dine trimming - buffing functions, can be working with linear workpieces. Product Parameters

Model	NOVA60	NOVA60M
Panel Width	Min.140mm	Min.140mm
Panel Thickness	Min.50mm	Min.50mm
Edge Thickness	0.4-3mm	0.4-3mm
Feeding Speed	16m/min	16m/min
Working Pressure	0.7Mpa	0.7Mpa
Net/Gross Weight	1050kg	1155kg
Total Power	7.5Kw	12kw
Overall Size	3030*750*1280mm	3850*740*1260mm

Detailed Photos
Touch Screen Control Panel convenient operation, quick response,and can display error alarm at the same time, convenient for maintenance
Gluing Advanced type of gluing unit, easy to maintain
Update Press Roller Update press roller, new upgrade, high efficiency
End Cutting Two high speed motors for end cutting,make sure the end cut stable and perfect
Fine Trimming Two high speed motors for trimming,the counters show the thickness of the panels,it is very easy to adjust
Scraping& Buffing It can smoothly trimmed edges for a perfect visual appearance buffing unit effectively clean off the glue residue on the edges
Product Display
Packaging & Shipping
Certifications
Company Profile

Exhibition
FAQ
1.Our Payment Way?L/C and T/T or other ways.2.Delivery Time?30 days after downpayment.We have our own forwarder and we havelong term cooperation with each other and have
closely relationshipwith each other,so there is no problem in shipment.3.Our Warranty?(1)One year guarantee from the delivery date of this machine under the normal operation of oneshift per day.(2)We will be responsible for the maintenance of damaged part which is under normal situationduring warranty period,
and all the round-trip courier transportation cost of damaged/repairedreplacement parts in warranty period should be borne by the buyer.
Wearing parts are notincluded.(3)24 hour technical support by email or calling(4)User-friendly English manual for machine using and maintaining4.Our srvices?(1)One-stop service, meet needs of the customers from individuals to international companies.
(2)OEM service accepted.(3)Separate trading office: Jaya Trading with 30 experienced sales offering full scale service.(4)After sale Service: experienced and knowledgeable team of technical support , provideengineer oversea service.

---
