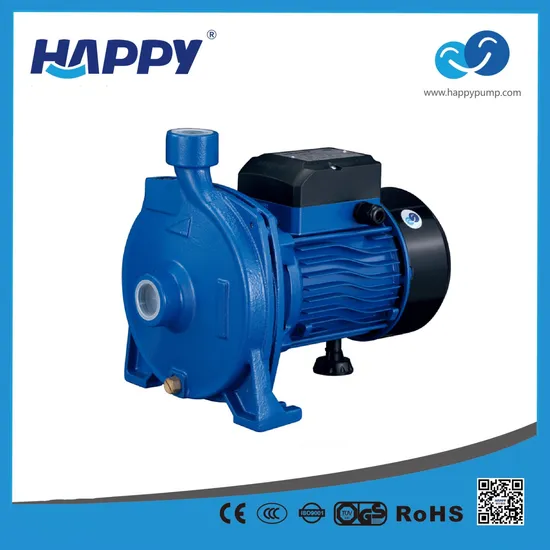

Surface Electric Centrifugal Presssure Water Pump (CPM)

Product Description

Centrifugal Pump Application
Centrifugal single impeller low head water pumps for flow irrigation systems with high flow rate.
Suitable to pump clean water or non-aggressive liquid charged with small solid impurity.
To be used in flow irrigation systems in gardening, agriculture and industrial fittings.
Operating conditions
*Liquid temperature up to 60
*Ambient temperature up to 40
*Total suction lift up to 9mt.
*Continuous duty
Motor
*Two-pole induction motor(n=2850r. P. M)
*Insulation Class B
*Protection IP44
Material
*Pump body: Cast iron
*Motor support: Cast iron, Aluminum for CPM-2 and HCT-S
*Motor housing: Aluminum, Cast iron for HPN
*Impeller: Brass, PPO for HMC-S, AISI 304 SS for HMCS-S
*Shaft with rotor: 45#steel, AISI 416 stainless steel if request
*Mechanical seal: Carbon/Ceramic
Single phase 220V-240V/50Hz
Single phase 110V-127V/60Hz if request
Single/three phase 220V/60Hz if request

NO.	TYPE	POWER		MAX.FLOW	MAX.HEAD	INLET/OUTLET	MAX.SUCT	N.W	PACKING DIMENSION
		(Kw)	(Hp)	(L/min)	(m)	(Inch)	(m)	(K.g)	(mm)
A	CPM130	0.37	0.5	90	22	1"*1"	9	8.9	280*190*240
B	CPM146	0.55	0.75	100	25	1"*1"	9	12.5	320*200*255
C	CPM158	0.75	1	120	33	1"*1"	9	14	320*210*270
D	CPM180	1.1	1.5	130	38	1"*1"	9	20	360*260*325
E	CPM190	1.5	2	150	42	1"*1"	9	21	360*260*325
F	CPM200	2.2	3	160	46	1"*1"	9	22	360*260*325

Zhejiang Happy Pump Industry Co., Ltd is a professional manufacturer with its own export right. We focus on the development and production of water pump for more than 20 years. Our products include a wide range of vortex pumps, centrifugal pumps, swimming pool pumps, jet pumps, submersible pumps, deep well submersible pumps, solar pumps, motors and so on. Our company has set up four workshops, metalwork, motor, rotor and assembly, and also have established pipelining operation from the pump body casting processing, motor embedded, rotor punching to assembly and the product testing. Our products are exported to many countries, especially the smart automatic pumps with plastic and copper material. In Vietnam, because of it's environmental protection, they sell pretty well. Our company always provide excellent quality products and best service to customers.
FAQ
Q1: Are you a factory or just a trading company?
A1: Manufacturer,and we focus on the development and production of water pump for more than 20 years.

Q2: Is customized service available?
A2: Of course, OEM & ODM both are available.

Q3: How can I get the quotation?
A3: Leave us message with your purchase requirements and we will reply you within one hour on working time. And you may contact us directly by Trade Manager.

Q4:Can I buy one as sample?
A4: Yes, of course.

Q5: How about your quality control?
A5: Our professional QC will check the quality during the production and do the quality test before shipment.

---
