Sf2000 Automatic Wooden Pallet Deck Nailing Machine

Product Description

SF2000 Automatic Wooden Pallet Deck Nailing Machine

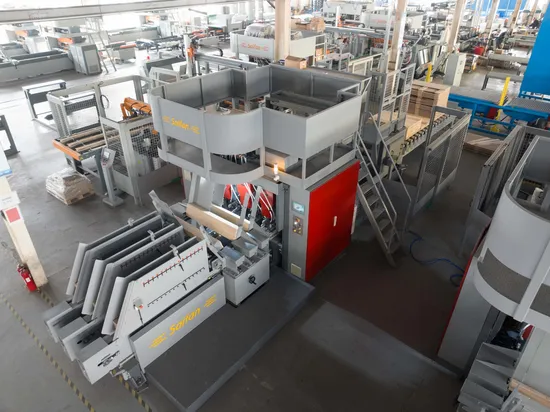

SF2000 wooden pallet deck nailing machine mainly used for pallet face board and stringer board assembly.This machine consist with 4 stations, Nailing head, Transition station, Stacker, outfeed table.

Model	SF2000
Face board length	800-1500mm
Face board width	70-145mm
Face board thickness	10-25mm
Stringer board length	800-1500mm
Stringer board width	40-145mm
Stringer board thickness	10-89mm
Face board + stringer board total length	20-110mm
Face board position	Program adjustable
Face board width	1-3 types
Nail length	25-90mm
Nail body diameter	2.8-3.2mm
Nail head diameter	6-8mm
Nailing efficiency	50-60 wood/min
Total power	22kw
Face board position accuracy	±2mm
Nailing way	Servo motor control
Nail filling way	Automatic
Nail box quantity	1pc
Nailing gun quantity	12pc
Operator	1-2
Air pressure	0.6-0.8Mpa
Air consumption	80L/Min
Stacker max. height	2.8m
Space	15.1*4.4*4.2m

Detailed Images
The nailing head is servo nailing, with low noise and high speed. The nail gun striker is durable and not easy damage. Each nail channel is equipped with missing nail detection sensor.
The machine equipped with an automatic nail feeding system, when add nails into machine no need to stop the machine.
The stacker is a mechanical stacker, with stable lifting and high efficiency, and is equipped with a safety fence.
The electric outfeed table is 4m length, automatic induction and automatic outfeeding.
Final Product
Packing&Shipping
Factory overview
Our CompanyHICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback.

---
