2m Asphalt Concrete Road Maintenance Cold Milling Machine Xm200K

Product Description

China New Cold Milling Machine XM200K Road Cold Milling Machine With Spare Parts
Product Description

XM200K road milling machine is for maintaining the asphalt concrete pavement and mainly applied to the excavation andrefurbishment of large areas of highways, roads of cities and towns, airports, goods yards and parking lots etc.It can remove the upheaval, oil wave, overlapping curve, track and others of the pavement; It can also excavate the pit slot and grooves of the pavement; It can be applied to the napping of cement pavement and milling faulting of surface course.The working efficiency of this equipment is high, the construction process is simple, and it is easy to control the milling depth, and it is convenient and flexible to operate and has good maneuvering characteristics, the used materials of milling can be recycled directly and widely applied to the repair, refurbishment and maintenance of asphalt pavement.

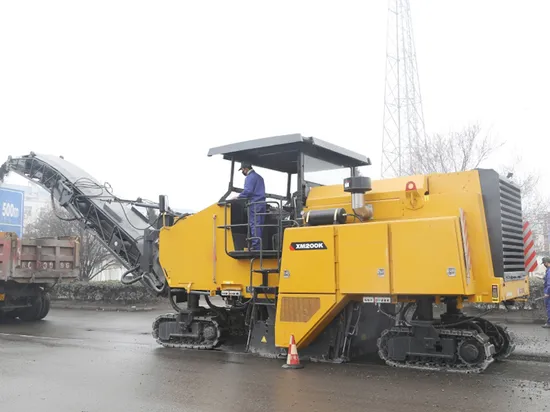

Detailed Photos
Product Parameters

Item		Unit	XM200K
Maximum milling width		mm	2000
Maximum milling depth		mm	320
Milling wheel	Tool spacing	mm	15/18
	Number of tools		168/146
	Milling wheel diameter (with tool)	mm	980
	Milling wheel maximum inclination	°	5
Diesel engines	Cooling method		Water cooling
	Model		QSX15
	Number of cylinders		6
	Rated power	kw	447
	Engine speed	rpm	2100
	Fuel consumption: full load	l/h	120
Speed/grade ability	Working speed	m/min	0-84
	Walking speed	km/h	0-5
	Theoretical Gradeability (Working Blocks)	%	80
	Ground clearance		320
Weight / load	Shipping weight	kg	30000
	Working weight	kg	34000
Track device	Front track	mm	1720×300×620
	Rear crawler	mm	1720×300×620
Box volume	Fuel tank	L	1400
	Hydraulic tank	L	300
	Water tank	L	3400
	Electrical system	V	24
Conveyor belt device	Aggregate conveyor belt width	mm	800
	Discharging conveyor width	mm	800
	Conveyor belt conveying capacity	≤m3/h	330
