Chinese Best Choice High Response New Style Servo Energy-Saving Plastic Injection Molding Machine Hxm2200

Product Description

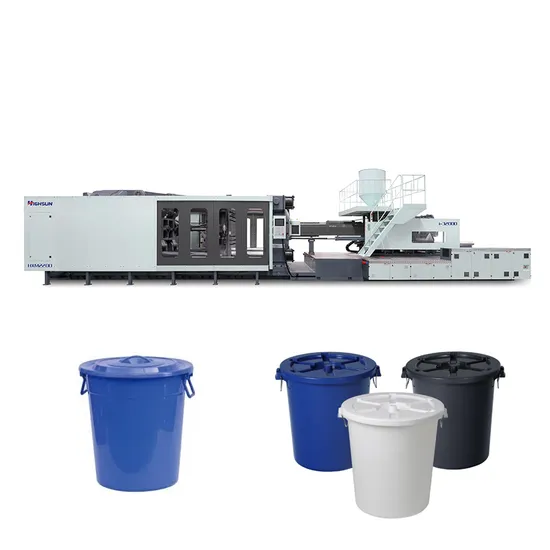

1.Picture

MODEL:HXM2200
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	155	165	175
	SCREW L/D RATIO	L/D	23	22	21
	INJECTION CAPACITY IN THEORY150130112882	cm3	17737	20099	22609
	INJECTION WEIGHT(PS)	g	16140	18290	20574
		oz	569.3	645.1	725.7
	INJECTION PRESSURE	MPa	181	160	142
	INJECTION RATE	g/s	1284	1455	1637
	PLASTICIZING CAPACITY	g/s	100	115	135
	SCREW SPEED	rpm	66
CLAMPING UNIT	CLAMPING FORCE	KN	22000
	MOVING MOULD-PLATE STROKE	mm	1950
	MAX. MOULD HEIGHT	mm	1700
	MIN. MOULD HEIGHT	mm	780
	SPACE BWTWEEN TIE-BARS (W×H)	mm	1800*1620
	HYDRAULIC EJECTOR FORCE	kN	520
	HYDRAULIC EJECTOR STROKE	mm	450
	EJECTOR NUMBER	n	33
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR /DRIVING POWER	KW	38+38+47+47
	HEATING CAPACITY	KW	110
	MACHINE DIMENSION (L×W×H)	m	19.4*3.9*5.1
	MACHINE WEIGHT	t	155
	OIL TANK CAPACITY	L	2270

Product Advantages:
a. Super energy saving
Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor will reduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%-80% of the power.
b. Hiigh precision and high stability
Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality.
c. High response and high efficiency
The driving system responses with high sensitivity . It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency.
2.Application
3.Processing,assembling production line
5.Loading containers
6. Customer case
Client in China produce shoe for several famous companies
7.Client in Malaysia

---
