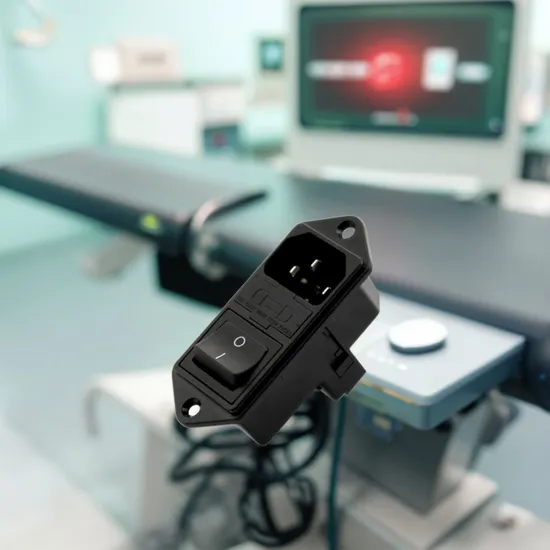

IEC C14 with Double Fuseholder Power Entry Module Medical AC Power Socket

Product Description

Double Fuse IEC Switch Connector with UL CE CQC Certificate Product Description

Specification	Inlet	Rocker switch
Power Rating	10 A 250 V AC	10 A 250 V AC
Electric Strength	AC 2,000 V for 1 Minute	AC 1,500 V for 1 Minute
Contact Resistance	30 mΩ Max.	20 mΩ Max.
Insulation Resistance	100 MΩ Min. at 500 VDC	100 MΩ Min. at 500 VDC
Operating Temperature	+70°C	+ 65°C (North America) + 90°C (Europe)
Materials	Thermoplastic UL Flammability 94V-0 & Copper Alloy	Thermoplastic UL Flammability 94V-2 & Copper Alloy
Mounting	C : Screw-on P : Snap-in	Double Pole (On / Off Switch)
Terminal	Q : Q.D / Solder Tab, 4.8 X 0.8 S : Solder Tab, 3.5 X 0.8	Solder Tab, 3.5 X 0.8
Panel Thickness	Snap-in Panel Thickness : 1.0 / 1.2 / 1.5

Product Features

Application
Win-Kare Technology Co.,Ltd is an expert company producing,and selling electrical and electronic products.Our company was set up in Hong Kong in August 2000.In order to expand business in mainland,a branchcompany was set up in Shenzhen in 2007.Our main products include full range of switches, dimmers,LED drivers, power supplies and IEC connectors,All our products are tested and certified according to IEC/EN standards,and have test report and from international certification body.

FAQ
Q1. Can I have a sample order for AC socket?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 4-5 weeks for order quantity more than
Q3. Do you have any MOQ limit for AC socket order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for AC socket?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new socket with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

---
