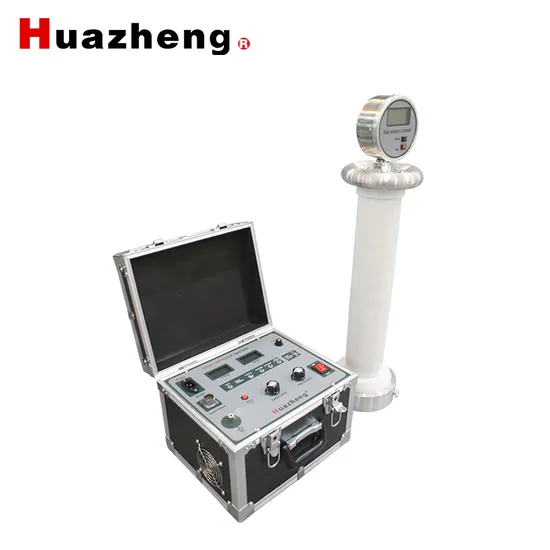

China DC High Voltage Testing Equipment 60kv Hipot Insulation Tester

Product Description

China DC High voltage Testing Equipment 60kv Hipot Insulation Tester
I.Introduction DC high voltage generator is DC high voltage power supply equipment.
It have functions of switch on protection under 0 voltage,over voltage and over current protection.
They are high stability and reliability.
It is easy to operate , small in size and light in weight.
II.Function
DC high voltage test for the power supply department, for example: DC HV withstand and leakage current test in power cables, the conductance current and 1mA reference voltage of magnetic blow out arrester and zinc oxide arrester test.
Using as power supply of laser, also electrostatic painting and twine and so on.
Other place required DC high voltage.

III.Major parameters

Voltage (KV)/mA Current (mA)	Control Box			High-Voltage Unit
	Rated Voltage	Size (mm)	Weight kg	Size (mm)	Weight kg
60/2-5	60KV	310 * 250 * 230	5kg	470 * 260 * 220	6kg
80/2-5	80KV	310 * 250 * 230	6kg	490*260*220	8kg
100/2-5	100KV	310 * 250 * 230	6kg	550*260*220	8kg
120/2-5	120KV	310 * 250 * 230	7kg	600 * 260 * 220	10kg
200/2-5	200KV	310 * 250 * 230	8kg	1000 * 280 * 270	20kg
300/2-5	300KV	310 * 250 * 230	9kg	1300 * 280 * 270	22kg
output polarity	Negative polarity, no-voltage start, linear continuous adjustment
working power supply	50HZ AC220V±10%
voltage error	0.5%±2,minimum solution 0.1KV
current error	0.5%±2,minimum solution 0.1µA
ripple factor	better than 0.5%
voltage stability	Random flunctuation , grid change is 10% , the flunctuation <=0.5%
working manner	Interval working, less than 30 minutes under rated load
working condition	Temperature: 0-40ºC, humidity: less than 90%
storage condition	Temperature: -10ºC~40ºC, humidity: less than 90%

IV.Detailed Photos

V.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on. Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
