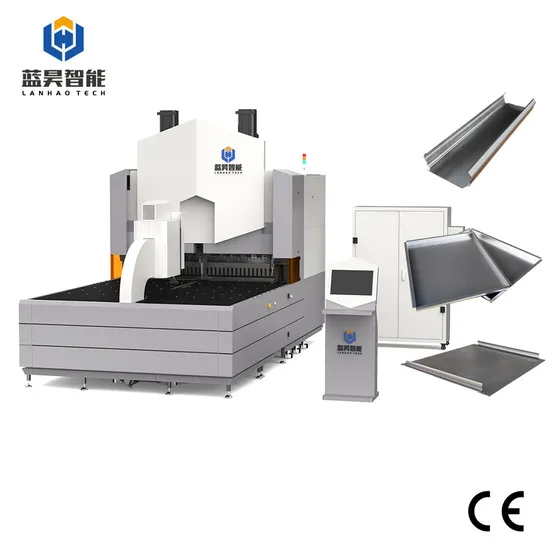

Lanhao Factory Provide Flexible China Panel Bending Machine

Product Description

Product Parameters

LHA-2500PC-03 Technical parameters
Feeding structure	Pressing arm
Work table structure	brush
System minimum accuracy	0.001mm
Max bending speed	0.2 second/time
Max feeding speed	90m/min
Max.bending width	2500mm
Max.Bending size	L 2500mm X W 1250mm
Max. Bending height (The maximum bending height after customization can reach 300mm)	170mm (customizable)
Min. Bending height	3mm
Min.arc radius	0.5mm
Rated power	380V
Motor power	79KW
Average power	About 2.9 KW
Noise	About 50 dB
Machine size	L565cm X W300cm X H340cm
Total weight	About 19 tons
User operating environment	Win7 or above system
Max. Bending width	UTS 515N/mm2 304 stainless steel 1.5mm UTS 410N/mm2 cold panel 2.0mm UTS 265N/mm2 aluminum panel 3.0mm
Min. Panel width	0.35mm
Four side forming min. Inner size	About 140mmx190mm( excluding inverted folded side)
Double side forming min. Inner size	About 140mm
Bending angle	0-180 degree
Axis	15

Bending Cases
Certifications

Company Profile

---
