Taa Brand Rubber Belt Tumble Blasting Machine Shot Blast

Product Description

TAA brand Drum Type Shot Blast Machine blasting shot cleaning machine
Product Description

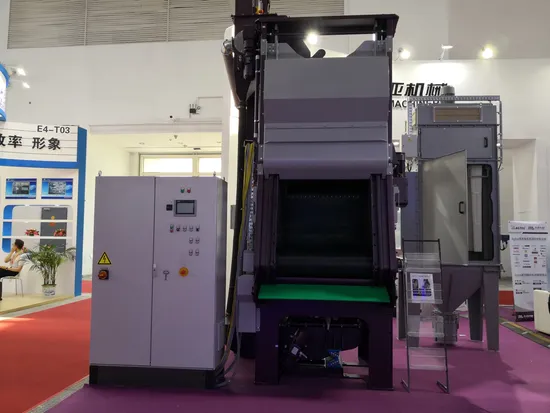

Rubber belt tumble blasting machine
The tumble blast design is widely accepted as one of the most efective blasting processes for removing scale, rust and burrs from mass production parts.
The tumble blast machine's endless rubber belt gently rotates the work pieces and uniformly exposes them to the abrasive stream for the entire blasting time.
Product Parameters

Technical Specifications	MG 50	MG90	MG 180	MG 270	MG350	MG550
Fill capacity (l)	50	90	180	270	350	550
Belt dimensions φ x width in mm	500*700	600×800	800×900	800×1.35	1,000×1.350	1.200×1.200
Max.single work piece weight (kg)	10	10	15	25	25	25
Max.weight of load(kg)	100	200	400	600	800	1000
Work piece transport	Optional	Optional	Optional	Optional	Optional	Optional
Abrasive conveyor system	Screw	Vibrating conveyor or screw	Vibrating conveyor or screw	Vibrating conveyor or screw	Vibrating conveyor or screw	Vibrating conveyor or screw
Turbine (number x kw)	1×5,5 1×7,5	1×7,5	1×7,5 1×11	2×7,5 2×11	2×11 2×18,5	2×11 2×18,5
Loader	Optional	Optional	Optional	Optional	Optional	Optional
Filter unit	PF 4/4	PF 4/4	PF 4/6	PF 4/9	PF 4/12	PF 4/12

Our Advantages
Advantages of TAA rubber belt tumble blast machines
1.Reliable blasting technology
2.Innovative ilter technology
3.Many diferent variants
4.Automation through harmonisation with in-house transport system.

Feature
high-performance turbines Many different variants Automation

1.Our turbines are solid, well-constructed pieces of machinery. Due to a smaller number of wear parts and high abrasive throughput, they operate extremely economically.
2.Because of the many different variants, it is possible to build the optimal blast machine for the intended application. Besides volume capacities of 50, 90, 180 and 270 litres, etc., users can also select the type of abrasive transport system and cleaning method. Conventional machines are equipped with a screw conveyor. TAA also ofers a vibrating conveyor for transporting abrasive as an available option. This option cleans the abrasive in the lower part of the machine ater the blasting process and then directly discharges impurities and any stray work pieces. Ater the blasting process, work pieces can be removed manually, or they can be fed directly to a work piece conveyor for further transport. This makes the machine easy to integrate into the industrial process.
3.TAA MG machines can be optimally integrated with in- house logistics systems. Custom solutions using special containers have already been successfully implemented.
The work pieces arrive at the loading mechanism in special containers (450 x 300 x 300 mm). The mechanism, which can be loaded from the side, takes the container and empties its contents into the blasting machine. Sensors auto matically control the loading process. The door of the blasting machine closes automatically and the blasting process begins. During this time, the loader returns to its initial position in order to pick up the next container of work pieces. After blasting, the work pieces move onto a
conveyor belt. Waiting at the end of the belt is exactly the same container from which the parts were removed.
Pressing a button on the control panel activates a loading mechanism that directly loads the blast machine. After the door is automatically closed and secured against accidental opening, the pre-defined blasting process begins. When the blasting process ends, the door opens automatically and work pieces are incrementally emptied directly into waiting containers.


After Sales Service

We place special value on perfect service. And not just for TAA shot blast machines but also for many other brands.
Our service program includes:
Wear and Spare Parts
Repair and (remote) maintenance
Inspection and advice
Modernisation and performance
enhancement Upgraded used machines
Instruction and Training The TAA distribution network consists of sales agents in many countries and regional sales partners in all important industrial regions.
Company Profile

ZIBO TAA METAL TECHNOLOGY CO., LTD is the leading manufacturer of blasting abrasives in China and one of the top third suppliers all over the world. Founded in 1997, TAA has been awarded as National Hi-Tech Enterprise, owning the only metal abrasive engineering technology research center in China.
Relying on the research center,TAA has continuously developed many high-performance products more suitable for customers,including:low carbon bainite steel shot, low carbon bainite mixed abrasives, stainless steel cut wire shot, stainless steel grit etc.

Certifications

Our team

TAA committed to the provision of high-end surface treatment equipment and solutions.
It has finally realized the surface treatment industry chain from metal abrasives to surface treatment equipment and overall contracting services, and as a "surface treatment integrated service provider", helping users improve production efficiency and reduce operating costs by providing high-quality products and overall services.

---
