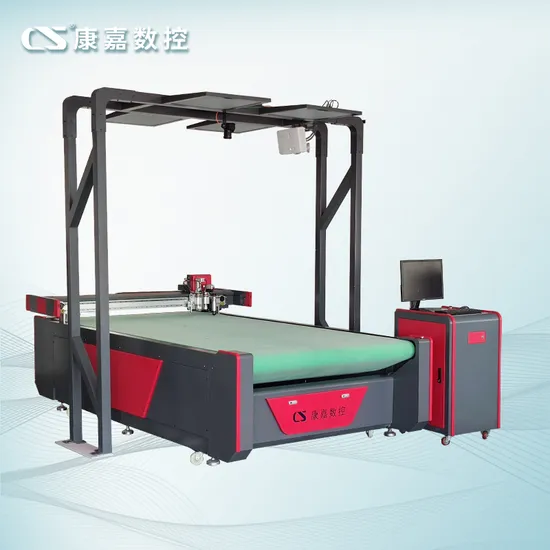

CNC Leather Cutting Machine Oscillating Knife Rubber / Cardboard / PVC / Foam Cutting Machinery Natural Leather Genuine Skin /PU Leather Cutting Machine

Product Description

CNC Leather Cutting Machine Osillating Knife Rubber / Cardboard / PVC / Foam Cutting Machinery Natural Leather Genuine Skin /PU Leather Cutting Equipment

Model: KJ-1625 Machine size can be customized
Brand: KANGJIA
Applicable cutting materials: different kinds of soft materials, sucha as all kinds of leather (genuine leather, PU leather etc.), car mats, car seat covers, PVC, embroidery accessories, foam composite material, XPE, coiled mats, silicone, rubber, truck tarpaulin, cardboard, plastic board, Grey board, white board, gasket,etc
Application: widely used in automotive interior industriy,garments, shoe-making, bags, car upholestery, packaging industry and advertising industry.
Functions: cutting
Optional cutting tool: the cutting tool is optional according to customer's requirements, such as rotary cutting tool, punching, v-cutting tool, creasing wheel,milling cutting tool.
Features: Oscillating knife cutting, fast speed, high efficiency; saving material and labor, more convenient and easier to operate for user.
Technical data:

Model	1625/1630/1830/2030/2125, can be customized.
Working area	1600*2500mm /1600*3000mm/1800*3000mm/2000*3000mm/2000*2500mm
Rated power	7-11KW
Fixed mode	Flat table /auto feeding table optional , table structure: whole welding process
Multifunctional heads optonal	Vibration knife (oscillatory knife)
	Circular knife (round knife / rotary knife)
	Marking pen
Safety device	Using infrared sensors, mechanical safty device, Intelligent anti-collision device responsive, safe and reliable.
Material feeding type	Auto feeding or manual feeding
Material fixed type	Vac-sorb (vacuum absorption), suction fan power: 2.2kw / 7.5kw / 9kw
Translational velocity	800-1500mm/s
Cutting speed	Max. 1500mm/s (according to different cutting materials)
Cutting thickess	≤60mm (according to different cutting materials)
Cutting material	Fabric, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber, cardboard etc.
Repated accuracy	≤0.1mm
Cutting type	Mechanical vibration physical cutting
Transmission / driving system	Motor brand Panasonic, YASKAWA, Fuji, Delta
Transmission type / Guide rail	Digital servo motor, linear guide, synchronous belt, rack/spline, ball screw
Instruction system	HP-GL compatible format
Control system	LCD touch screem ( custom made)
Voltage	110V/220V / 380V±10%; 50HZ, 60HZ
Other configuration	Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pump

About us
Advantage of Our CNC Cutting Machine
1. Time Saving: The machine cuts by vibration knife. It's possible to finish cutting 3 pieces of 4D or 5D car mats within 3 minutes, much faster than cutting by hand. It guarantees fast output of customized car mats.
2. Material Saving: Pattern nesting can be done and checked carefully before cutting, avoiding hiden lost during careless cutting by workers. It can save at least 5% materials than manual cutting.
3. Storage Room Saving: Cut whatever you want, whenever you need. No need to have a large storage room for a large quantity of ready car mats.
4. Flexibility: Each customer can pick up the materials, patterns they like to make the special car mats for their special cars, expending a large automotive beauty industry at your end!
Our team:
Certificates & Honors:
Packing and delivery
Why Choose Us? 1. Saving labour and material cost
2. Saving time
3. Everyone can operate and cut without lots of skills
4. Boost production capacity
5. Consistent accuracy even with complicated patterns
6. Reduces your lead times of pattern cutting from your clients
7. Wide range of clothes/garment/apparel material application
8. Running in a high automaton
9. Special design: less moving structure guarantee low down time and easy in installation and maintain
10. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
11.Good experienced engineers
12. CNC control
13. Knife cutting method: oscillating Blade with multifunctional tool heads
14. Easy conversion
15. With more and more agents / partner joining us, after sales team can be in your country by your side.

---
