RFID Access Control Card Reader Support H-ID Prox Card 125kHz

Product Description

RFID access control card reader support H-ID Prox card 125Khz
We can offer the free sample to you test if you want .
We Promise the lower price,higher quality and best serve if you choose our company. . Instruction:

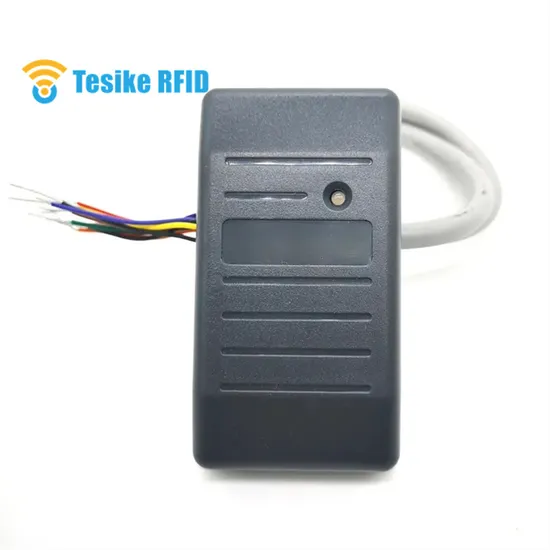

TSK6520P is a 125KHz contactless smart card reader which can read H-ID card serial number. Produced by epoxy potting material, make it prevent damage, windproof and waterproof, fit for varies indoor and outdoor environment installation. It adopts advance 8-bit microprocessor technology, with watch dog and voltage monitoring circuitry to ensure reliable operation. Features:
125KHz Operating Frequency
Support 125kHz prox card
Read CSN card number only
Different interface for option

Parameter:

TSK6520P

Frequency

Supporting Card

Interface

Power Supply

Card Reading Distance

Operating Temperature

Baud rate

Dimension

PIN Definition:

WEIGANG26
RED:	DC9~12V
BLACK:	GND
GREEN:	DATA0
WHITE:	DATA1
BROWN:	HOLD
BLUE:	LED(Touch Down)
GREY:	BUZ(Touch Down)
YELLOW:	NC

Module NO.:

TSK6520P-S	RS232 Interface
TSK6520P-W	Wiegand Interface

Packing information:

Packing (TTL)
Quantity	Dimension(cm)	Weight(kg)
224pcs	55*40*33cm	16kg

Application:
· Access control
· attendance application
· public transportation e- card system
Key attributes Industry-specific attributes Frequency 125Khz
Protocol H-ID PROX
Other attributes Place of Origin Guangdong, China
Brand Name TSK
Product name access control card reader
Frequency 125Khz
Standard H-ID PROX
Interface option RS232, WG26
Power supply 9-12V
Reading range 0-5cm
Dimension 80*43*13mm
read/write read UID only
Supporting Card H-ID prox and compatible card
Baud rate 9600 default

---
