| US$700.00-2,500.00 | 1 Piece (MOQ) |

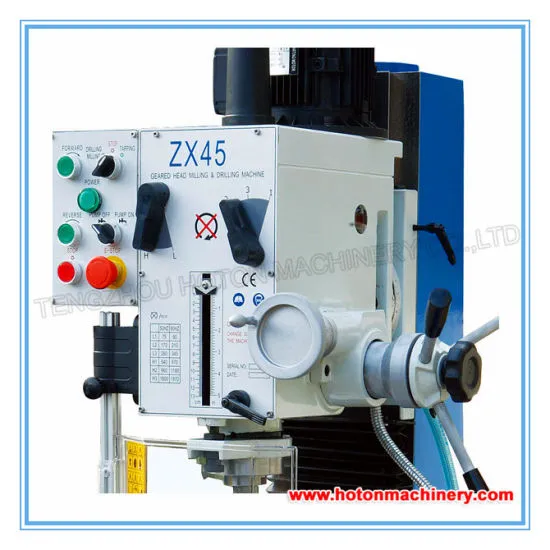

| ITEM | ZX45 |
| Max.drilling capacity(iron/steel) | 31.5/40mm |
| Max.mill capacity(face/end) | 80/32mm |
| Spindle taper | MT3/MT4/R8/ISO30 |
| Worktable size | 800*240mm |
| Worktable travelX/Y | 570/230mm |
| Head tilt left right | 90 |
| Spindle travel | 130mm |
| Spindle nose to worktable | 470mm |
| Spindle center to column surface | 285mm |
| Spindle speed(option) | 6steps:60Hz 90~1970rmp 50Hz 75~1600rmp |
| Motor(option) | 1.1kw |
| N.W/G.W | 300/350KG |
| Packing size(L*W*H,enclude foot and pan) | 850*760*1150mm |
| STANDARD ACCESSORIES: | OPTIONAL ACCESSORIES: |
| Draw bar Adapter Taper shank for drilling chuck Drilling chuck Arbor T slot bolt Washer Nut Tilted wedge Spanner Oil gun | Foot stand and oil pan Cooling system Working light CE electric box Spindle power feed Table power feeder DRO Two step motor |
| Company Profile: |
| Tengzhou Hoton Machinery Co.,LTD was established in 2006, and is the professional machine manufacturer in China. There are 480 workers, of whom 60 are engineers. It has an area of 46,000 square meter, general assets 30,000,000. It has a store of 350 equipments and the good ability of products design & manufacturing. It has export quality permit from 2007, and has export right given by the State Foreign Economic Trade Committee in 2008. |
| The leading products: "Hoton" series of CNC machines, Lathes, Milling machines, Drilling machines,Grinding machines, Saws, Sheet metal machines, Metal forming machines, and other machine accessories.Some products have national patent.It has fourteen series, over eighty models by itself. It has the ability of making 100,000 sets every year. All the products are designed perfectly and has high quality high performance and low price, and the excellent quality guarantee system. The products have past ISO9001 and CE certification since 2009. The products have been export to five continents, over forty countries and areas. It resulted to the attraction of client abroad and home, the quickly promotion of products sale. |
| Tengzhou Hoton Machinery Co.,Ltd. is willing to make common progress and developments with all the customers. Quality first,Constantly perfecting skills. |
