4 Axis Vertical Gun Drilling Machine with Advanced CNC Technology for Deep Holes

Product Description

In the dynamic realm of machining operations, drilling serves as an indispensable cornerstone, omnipresent across myriad industries. Conventional drilling tools like bench drills, milling machines, and radial drills have historically tethered workers to tedious, repetitive tasks, often compromising on precision and quality. Challenges such as safety, efficiency, and processing constraints have long plagued manufacturers and operators. Enter the transformative era of CNC technology: the CNC Deep Hole Drilling Machine has emerged as a game-changer. This groundbreaking innovation not only liberates workers from manual labor but also dismantles the barriers in deep hole processing. With the capability for single-pass drilling, it achieves the precision of traditional methods in boring, enlarging, and expanding. Moreover, it integrates features such as automatic chip removal and CNC positioning, thereby automating the entire process and significantly enhancing operational quality and efficiency.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

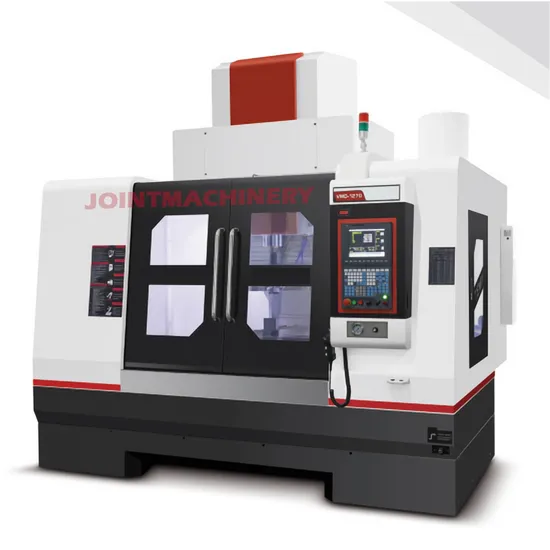

4-Axis Vertical Automatic Tool Change and Guide Sleeve Drilling and Milling Composite CNC Deep Hole Drill Series Building on the robust four-axis vertical deep-hole drilling foundation, this advanced machine incorporates a high-performance intelligent tool library and a telescopic guide sleeve base, thanks to cutting-edge technological innovation. This configuration flawlessly enables automatic gun drilling and guide sleeve functions, remarkably boosting processing efficiency while minimizing unnecessary downtime. The intelligent tool library accommodates a diverse array of tool accessories, including gun drills, milling cutters, twist drills, U drills, tapping tools, and guide sleeves, providing formidable support for versatile processing tasks. The system allows seamless transitions between drilling, milling, and tapping processes, making it ideal for handling intricate parts such as automotive components, medical devices, and die manufacturing. Its application in these fields is extensive and well-regarded.
Precision Vertical CNC Deep Hole Drilling Milling Machine for Metal Components

Model	Unit	VMD-1270M
Inner diameter of drilling	mm	1.5-25
Max drilling depth	mm	380
Table size	mm	1400*700
X/Y/Z axis travel	mm	1200*700*480
Z2 axis travel	mm	480
Drilling cutting speed	m/min	1-300
Spindle taper		BT40
Max spindle rotary speed	rpm	10000
Spindle motor power	kw	7.5-11
X/Y/Z axis motor	kw	3.9/5.9/5.9
Z2 axis motor	kw	5.9
ATC		BT40 Dis type ATC 16 tools
Guide sleeve		8 tools auto guide change sleeve
Load weight	kgs	2000
Machine weight	kgs	9000
Machine dimension	mm	4400*3200*3500

Shenzhen Joint Machinery Co., Ltd. is a prestigious manufacturer and exporter renowned for our premium CNC lathe machines, CNC deep hole drilling machines, Swiss-type automatic lathes, and cutting-edge milling and grinding machines. Our dedication to delivering superior machines and unmatched service to our esteemed international clientele is steadfast. Through unwavering quality control and continuous advancement, we ensure that our products consistently meet the zenith of industry standards. By leveraging core technologies from Taiwan and Germany, along with state-of-the-art production equipment and techniques, we achieve unparalleled product excellence and reliability. Celebrated for their precision, stability, and reliability, our machines adeptly handle complex, high-demand machining challenges. Our products hold a strong presence in the global markets of Asia, Europe, South America, and North America, and are highly praised by our customers. We have established lasting partnerships with clients worldwide, collaboratively creating significant business value.

---
