CNC Automatic Sheet Metal Bender Bending Machine for Metal Fabrication

Product Description

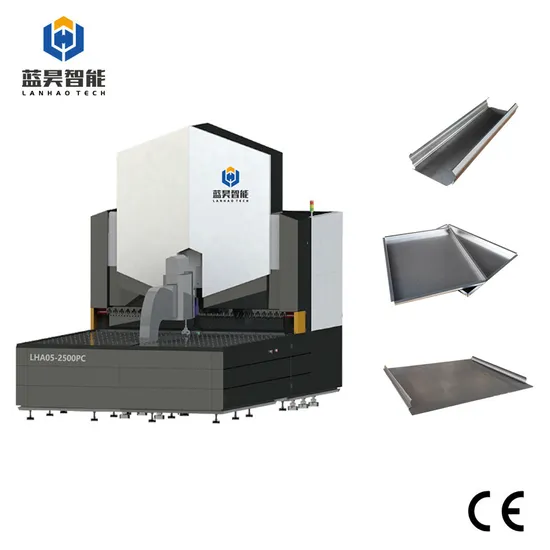

LHA-PC series intelligent flexible bending center adopts the pressing arm loading method, and the whole machine is designed and produced according to the standard of high-precision machine tools. It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces. It has more functions such as automatic pressing arm adaption, oblique pressing point adaption, double C-axis rotation, wider range of application, and outstanding performance in terms of stability, reliability, etc.
Product Parameters

Items	LHA-1400PC1/1400PC3	LHA-2000PC1/2000PC3	LHA-2500PC1/2500PC3
Max. bending speed	0.2 second/time	0.2 second/time	0.2 second/time
Max. bending width	1400mm	2000mm	2500mm
Max. bending height	170mm(1400PC1)	170mm(1400PC1)	170mm(1400PC1)
	300mm(1400PC3)	300mm(1400PC3)	300mm(1400PC3)
Rated voltage	380v	380v	380v
Total motor power	40Kw	79Kw	79Kw
Average power	about 1.9Kw	about 2.6Kw	about 2.9Kw
Machine size	440*190*290cm	510*265*330cm	565*300*340cm
Total machine weight	about 12t	about 16t	about 19t
Max. bending thickness (thicker panel customizable)	UST 515N/mm2 304 stainless steel 1.5mm	UST 515N/mm2 304 stainless steel 1.5mm	UST 515N/mm2 304 stainless steel 1.5mm
	UST 410N/mm2 cold panel 2.0mm	UST 410N/mm2 cold panel 2.0mm	UST 410N/mm2 cold panel 2.0 mm
	UST 265N/mm2 aluminum panel 3.0mm	UST 265N/mm2 aluminum panel 3.0mm	UST 265N/mm2 aluminum panel 3.0mm
Minimum panel thickness	0.35mm	0.35mm	0.35mm
Four sides forming minimum inner size	140*190mm	140*190mm	140*190mm
Two sides forming minimum inner size	140mm	140mm	140mm
Max. bending size	1400*1400mm	2000*1250mm	2500*1250mm

Applications Lanhao flexible intelligent bending center bending sheet metal bending does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.
After Sales Service 1. After the equipment is checked and accepted, the quality guarantee period of the whole machine is one year
2. During the warranty period of the equipment, our company is responsible for free replacement or maintenance of parts due to the quality of the equipment itself, except for conventional consumables (such as suction cups) and those that are responsible for the user's illegal operation.
3. Our company provides life-long maintenance services for the products provided, and provides daily consultation and guidance related to equipment at any time. Outside the warranty period, our company still provides extensive and preferential technical support and spare parts supply for the buyer. For each device, our company will establish a uniquely coded "user profile" to track and record the relevant information of the user using the equipment. Our company will promptly notify the buyer of the software upgrade situation. Except for new requirements, we provide daily software upgrade services free of charge.
4. Our company has sufficient spare parts and accessories, which can provide technical services and spare parts services to the buyer in time to meet the needs of equipment maintenance.

---
