OEM Atlas Copco Screw Compressor Spare Parts 1612386901 Air Oil Separator

Product Description

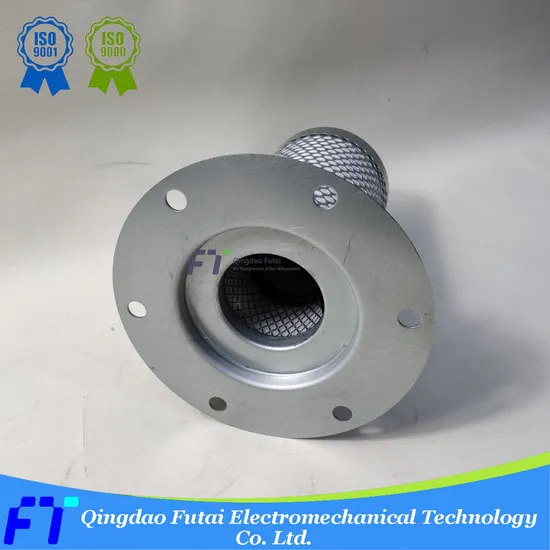

1612386901 Atlas Copco OEM Screw Compressor Parts Air Oil Separator
Product Description
Replace Air Compressor Oil Separator 1612386901 for Atlas Copco

Part No.	1612386901
Filtration efficiency	98%
Working Life	>4000H
Filter Material	HV Filter
Residual Oil	<3PPM

Causes of failures/ apparent failures
Scavenge line too shortScavenge line does not reach into internal bowl at the base of the separator.
Result: high oil carry over
Scavenge line too longEnd of scavenge line seats against base of bowl forming a seal. No oil, or an insufficient quantity is sucked up by the scavenge line. Compressor manufacturer's gap clearance is normally 1 to 2 mm alternatively, ensure tapered cut to end of scavenge line.
Result: high oil carry over
Scavenge line blocked with dirtResult: high oil carry over
Scavenge line filter blockedSome compressor models are fitted wit a small stainless steel mesh filter at some point in the scavenge line which is to be cleaned on a regular basis. If not cleaned the filter will block resulting in no scavenge action.
Result: high oil carry over.
Scavenge line cracked / damagedAllows atmospheric air to be ingested and insufficient or no oil removed from separator.
Result: high oil carry over.
Maintenance of the oil separator
The oil separator is a component that separates the screw lubricating oil from the compressed air. Under normal operation, the service life of the oil and gas separator is about 3000 hours, but the quality of the lubricating oil and the filtering accuracy of the air affect its life,have a huge impact.
It can be seen that the maintenance and replacement cycle of the air filter element must be shortened in the harsh environment, and even the installation of a pre-air filter is considered.
The oil separator must be replaced when it expires or the pressure difference between the front and back exceeds 0.12Mpa. Otherwise, the motor will be overloaded, the oil separator will be damaged and the oil will run out.
How to repair or replace the oil separator?
Open separator container and replace separator filter.Make sure the new filter is the same size as the old filter, no matter how long or short, make sure to adjust the length of the scavenger.Be sure to use the shim provided, as these shim contain metal conductors, which prevent the accumulation of static electricity in the separator, which may cause sparks or explosions in the separator vessel.
More Products for Choose

A	1622314000	1623051600	1616465600	2901905800
1092003018	1622087100	1625725300	2901006101	2906002000
1202641400	1622365600	1631105500	2901000401	1613800700
1612386900	1625725300	1631050200	2901034300	1625703600
1613688000	2911007500	2901043200	2901085800	1631106900
1613243300	1625703600	2901162600	2906009800	2205176172
1613692100	1622035101	2901196300	2906058800	1092200289
1613730600	1625481100	2901905600	1616283600	1202834300
1613750200	2202929400	2252631300	2989005100	1622024500
1613839700	2911006800	2901905900	1616283602	1622035101
1613839702	1622051600	2911006800	1616283603	1622062301
1613901400	1622062301	2911007500	2901008500	1622087100
1613955900	2901021301	2911011600	2901056622	1625481100
1614642300	6221372800	2911011700	2901162610	1625775300
1614905400	1613750200	2911001600	2901164300	1625775400

I R	24438426	39894597	92062132	C
15487200	24572539	39895610	92699198	98262-33
22089551	24771180	42542787	92722750	98262-162
22219174	35856376	42841247	92725514	98262-5094
22291280	36723666	54509427	92735547	10651874
22517775	36762250	54509435	92754688	11427274
23545841	38008579	54509500	92754696	11427474
23566938	38008587	54595442	92765783	100005424
23708423	39737473	54601513	92890334	100007223
23716467	39831888	54639802	ATS11034	100007587
23716475	39846787	89202022	ATS19034-2	100014428
23782386	39863857	89213011		A10012674

Tips:
If you don't find the part number you want in my online shop, please do not hesitate to contact us, Maybe I can check it for you. At the same time, we are a factory and can also customize unconventional filter elements for you at any time.
Company Profile&Certifications
Now over 100,000 quality filters including compressed air filters, Hydraulic Filters and complete filter housing assemblies at wholesale discounts. We offer OEM products as well as high quality replacements, engineered to precise OEM specifications and guaranteed to match the exact form, fit and function as the original equipment.Our company is committed to continuous innovation and further improvement to create, improve the efficiency and productivity of excellence, to achieve the highest level of reliability and performance.
Company Services
Company Services
1. Provide professional advice on the design of customers; Or according to the customer's request to provide solutions.
2. All filter element will be test before delivery,
OEM and ODM order are accepted, Any kind of logo printing or design are available.
3. Good Quality + Factory Price + Quick Response + Reliable Service,is what we are trying best to offer you.
4. If you have any question, please contact us freely by E-mail or Telephone.

Company team
Our company is located in the beautiful coastal city of Qingdao,is a professional manufacturer of air compressor filters and separators,
We repect the enterprise spirit of "steadyfastness,
hard work and responsibility" and creat a good corporate environment based on the operation principle of "Integrity,reliability and innovation". With the survival idea of "perfect technology, good service and excellent quality",
We always adhere to customer first,
aim at serving customer sincerely and touching customer with our service.
We plunge ourselves to provide clear and sustainable comprssed air to our customer,
meanwhile constantly pursue to save the sunning cost of compressor system for them.
Profession, concentration, focus is our corporate philosophy.
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?A: We are factory, you are very welcome to visit our factory at your convenience.Q: What products do you supply?A: We are a professional manufacturer of air compressor filters with rich experience. Mainly supplying: Replacement and customized filters of air compressors; Air compressor parts; Line Filters; Vacuum Pump Filters; Hydraulic Filters, for many air compressor brands.Q: Could I get some samples?A: Yes, we can supply the sample, but the customers should bear logistics costs at first.Q: How long is your delivery time?A: If there is stock, the lead time is about 2 working days after we get the payment. The specific delivery time depends on models and the quantity of your order.Q: What's Minimum Order Quantity of your air compressor part?A: the MOQ is 1pc, need you pay for the delivery cost.Q: Can I become an Agent / DISTRIBUTOR of FT Filter?A: Welcome! Please confirm the cooperation details and distributor qualification requirements with us, We have full advantages on quality and competitive price.

---
