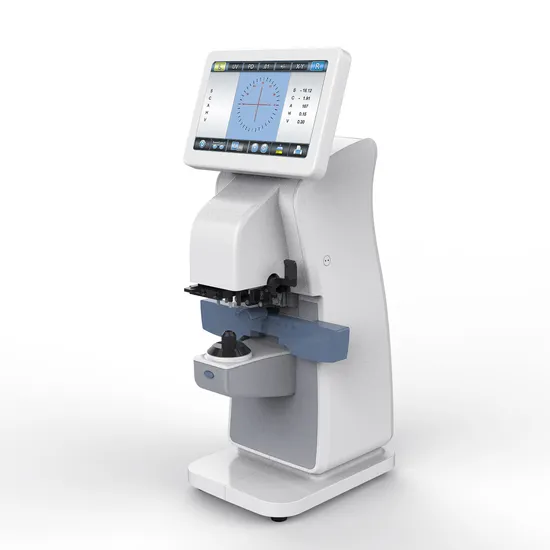

Touch Screen Focimeter Ophthalmic EquipmentProduct FeatureInterpupillary distance measurement functionCan measure lens with high refractive index, polarization, high dispersion, solar film, multi-focus, scratch, etc.Single light, double light, triple light, progressive multifocal light, etc.UV / blue light transmittance measurement functionContact lens measurement functionHD Touch Screen Monitor
Cylinder mode:
| +, + / -, -
|
Prism representation mode:
| X-Y: Cartesian coordinates H: I, O. V: U, D
|
P-B: Polar coordinates mm:
| X and Y are both expressed in mm
|
Reading resolution:
| 0.01D/0.06D/0.12D/0.25
|
Measurable lens:
| >10%; the transmittance of lens when the power exceeds 10D is required >20%
|
Contact lenses:
| 0 to ± 25D, BC 6.00 to 9:00
|
Display:
| 7.0-inch HD touch LCD monitor
|
Menu:
| user-friendly design, easy to operate
|
Applicable lens diameter:
| 20mm - 100mm
|
Power supply:
| AC100(±10%)-240(±10%)V 50/60Hz 40VA
|
Maximum power:
| 40W
|
Weight:
| 6.8kgs
|
Instrument specifications:
| 550mm (L) × 350mm (W) × 350mm (H)
|
Environmental conditions
|
a. Temperature:
| 5-40C (use temperature) -20-60 ° C (storage / transport temperature)
|
b.Humidity:
| 30-85% (non-condensing) (use humidity) 10- 95% (storage / transport humidity)
|
c. Atmospheric pressure:
| 700-1060hpa
|
d. Altitude:
| up to 2000m
|
e. Other:
| no harmful dust and smoke
|
Optional accessories: printer (built-in thermal printer, paper width: 57mm)
|
