Latest Vacuum Transformer Oil Purifier and Oil Filtration Machine

Product Description

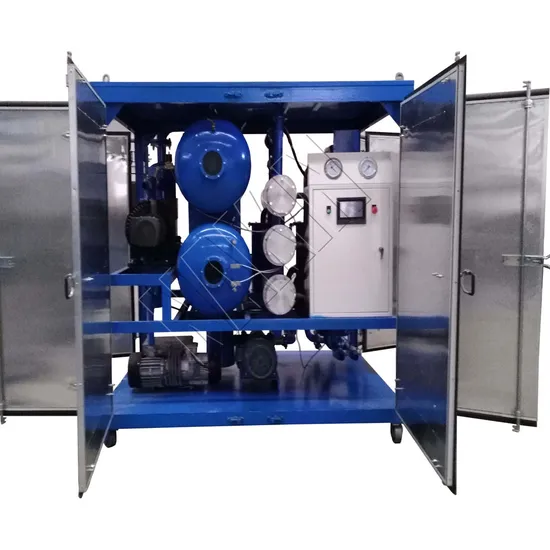

Product Description ZYD Series Double-Stage Vacuum Insulation Oil Purifier can quickly and effectively remove moisture, gas (Hydrogen, acetylene, methane, etc.) and impurities from the insulation oil, to improve the oil dielectric performance. The filtered oil can effectively ensure the power equipment run safely and normally. ZYD Double-stage vacuum oil purifier is widely used in power supply, power generation, power transmission and transformation, power equipment manufacturing, power engineering, electrical equipment maintenance, power testing, electrical research and other industries. It is especially suitable for the filtration of high-grade transformer oil and ultra-high transformer oil, and can be applied to online oil filtering operations at the power substation (like 110KV / 220KV / 500KV). Meanwhile, ZYD oil purifier has the functions of vacuum drying, vacuum oil injection, and hot oil circulation. It can also be used as a separate vacuum pumping unit to evacuate transformers and power equipment.
Our Advantages The vacuum system uses the roots pump as the main pump and the rotary vane vacuum pump as the primary pump. Fast start-up, large pumping speed, stable performance, and high ultimate vacuum of less than 5Pa.
Double horizontal vacuum separators, combined with Duplex-Stereo film evaporation technology
Strong ability to remove impurities: ultra-large area cylindrical precision filter element, with high filtration accuracy, easy installation and replacement.
Low-load heating: Adopt advanced internal and external double-tube heat radiation indirect heating technology.
Automatic control to realize unattended, safe and stable working.
Safety interlock protection for oil pump, vacuum pump, heater,keep safely working
Low noise, easy operation, long maintenance interval, low energy consumption, low operating cost
It can be used together with the insulation oil regeneration device, which has the effect of decoloring, deacidification, deoxidation and removing free carbon and other harmful substances from the oil.

Optional Device:
A-Optional PLC automatic control
B- Imported parts (optional imported brand vacuum pumps, motor oil pumps, filter elements, electrical components, instruments)
C- flow meter (optional)
D- Configure the frequency conversion system to realize the flow selection when filtering or filling (optional)
E-On-line micro-water meter (optional)
F- Pirani Digital Vacuum Gauge (optional)
G- Fully enclosed metal door design, rainproof and dustproof (optional)
Product Parameters

Index			Unit	ZYD-30		ZYD-50	ZYD-100	ZYD-150	ZYD-200	ZYD-250	ZYD-300
Flow Rate			L/H	1800		3000	6000	9000	12000	15000	18000
Working Vacuum			MPa	-0.08~-0.099
Working Pressure			MPa	≤0.4
Working Temperature			ºC	20 ~80
Power Supply				380V 50HZ,3Ph (or According to user demand)
Working Noise			dB(A)	≤65~85
Heating Power			Kw	24		30	60	90	120	150	180
Total Power			Kw	27.5		35	65	96.5	128	162	185
Inlet / Outlet			mm	25		32	40	50	50	65	65
Weight			kgs	550		650	880	1000	1250	1550	1800
Dimension	L		mm	1500		1550	1650	1800	2000	2150	2400
	W		mm	1450		1450	1550	1650	1750	1750	1800
	H		mm	1700		1750	1800	1900	2100	2200	2200
After Purification
Breakdown Voltage		KV			≥ 70
Water Content		ppm			≤ 3
Gas Content		%			≤ 0.1
Particles		µm			≤ 1
